When you specify volcanic stone tile Marana installations for contemporary architecture, you’re working with one of the most thermally demanding environments in the Southwest. Marana’s temperature swings — from 115°F summer peaks to occasional freezing winter nights — create expansion and contraction cycles that exceed what most volcanic materials encounter in their native quarry settings. You need to understand that lava stone tiles Arizona applications aren’t just about aesthetics; they’re about engineering material performance for extreme conditions.
Your selection process should account for the fact that volcanic stone tile Marana projects face unique challenges. The material’s inherent porosity (typically 12-18% for volcanic stone versus 3-8% for conventional materials) interacts with Marana’s monsoon patterns in ways that affect long-term joint stability and efflorescence control. You’ll find that proper specification requires balancing thermal mass benefits against initial surface temperature extremes — a trade-off that becomes critical in pedestrian applications.
Material Composition and Thermal Behavior

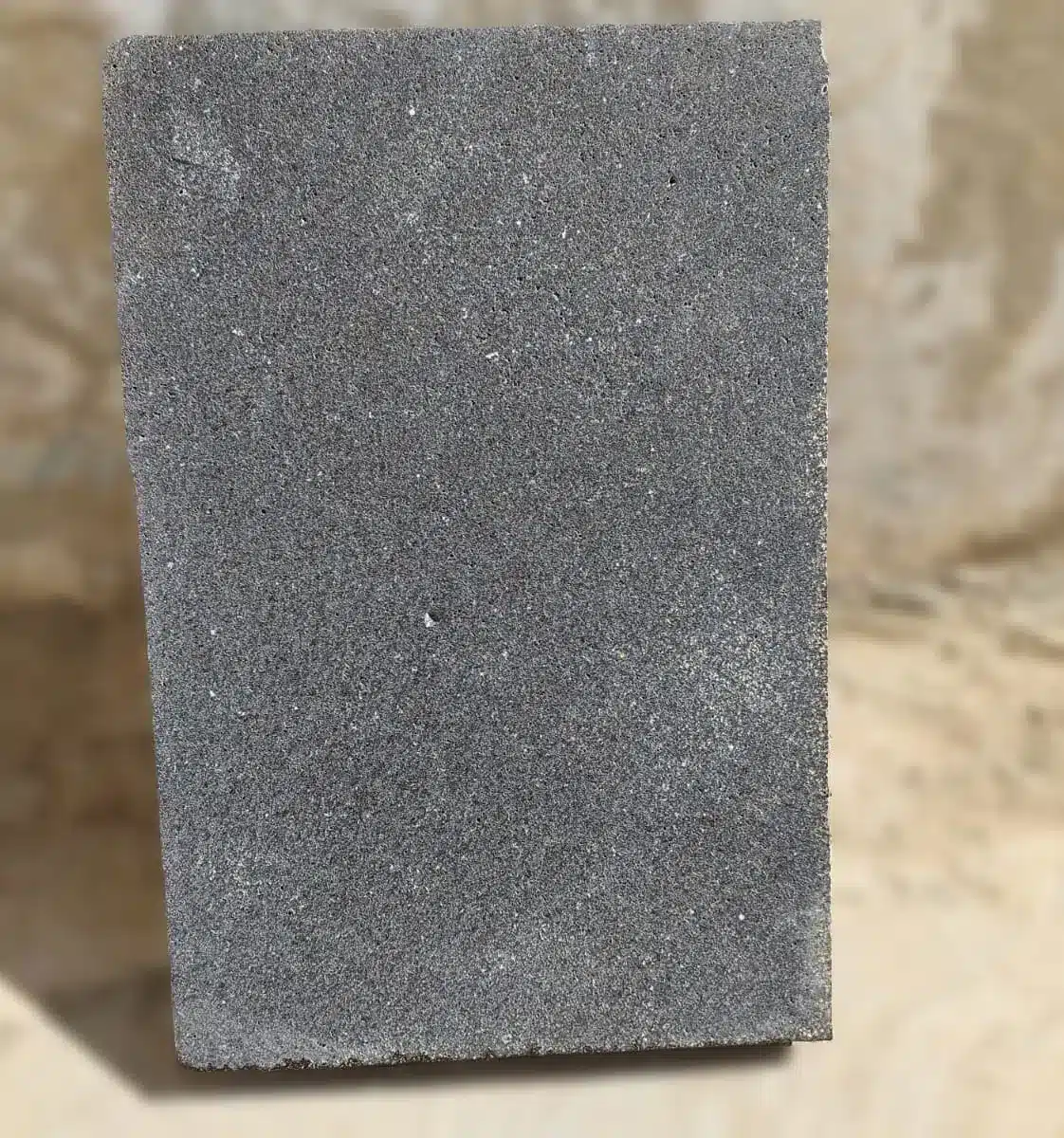

Volcanic stone tile Marana specifications must address the material’s cellular structure. You’re dealing with rapidly cooled lava that trapped gas bubbles during solidification, creating interconnected pore networks that measure 0.3-1.2mm in diameter. This porosity gives you thermal mass advantages — the material absorbs heat slowly and releases it over 6-8 hour cycles — but it also means you need to account for moisture penetration depths of 3-5mm under monsoon conditions.
The thermal expansion coefficient for volcanic stone tile Marana applications ranges from 6.1 to 6.8 × 10⁻⁶ per °F, which is 15-20% higher than limestone or travertine. When you calculate joint spacing for Marana contemporary stone installations, you need expansion joints every 12 feet in shaded areas and every 10 feet where direct solar exposure exceeds 7 hours daily. Your specifications should include 3/16″ to 1/4″ joint widths — the larger dimension for south and west-facing installations where thermal cycling peaks.
- You should verify compressive strength exceeds 7,500 PSI for commercial pedestrian applications
- Your porosity specifications need to distinguish between open porosity (affects sealing) and closed porosity (affects structural integrity)
- You’ll want flexural strength minimums of 1,200 PSI for unsupported spans over 18 inches
- Surface hardness should meet Mohs 5-6 for exterior foot traffic applications
Color Stability and UV Resistance in Desert Exposure
What catches most specifiers off-guard with exotic tile materials is the color shift that occurs during the first 18-24 months of Marana exposure. Volcanic stone tile Marana installations undergo oxidation of residual iron compounds in the surface layer, typically shifting 8-12% darker in charcoal and black finishes, while gray tones may lighten by 5-8%. You need to review samples that have undergone accelerated UV exposure testing equivalent to 10,000+ hours to predict actual field appearance.
Your color selection process should account for Marana’s UV index, which peaks at 11-12 during summer months. The material’s natural pigmentation comes from iron oxides, magnesium silicates, and trace minerals that remain relatively UV-stable compared to dyed or stained products. However, you’ll see surface weathering that creates a patina effect after 3-5 years of exposure. This isn’t deterioration — it’s a natural maturation that many architects specify intentionally for Arizona unique surfaces.
When you evaluate samples, request materials that have been exposed to Arizona conditions for at least two years. Warehouse stock that’s been stored indoors won’t show you the actual field appearance. The surface texture evolution matters too: open pores may accumulate fine dust particles that darken the overall appearance by 10-15% in low-rainfall areas unless you implement pressure washing protocols every 18-24 months.
Surface Finish Options and Slip Resistance Performance
You have four primary finish options for volcanic stone tile Marana projects, each delivering different slip resistance and maintenance characteristics. Flamed finishes provide DCOF ratings of 0.58-0.65 when dry and 0.48-0.52 when wet — your best choice for pool decks and high-moisture areas. The thermal treatment exposes subsurface pore structures while creating micro-roughness that maintains traction without feeling abrasive underfoot.
Honed finishes deliver DCOF 0.45-0.50 dry and 0.38-0.42 wet, which meets commercial walkway requirements but falls short for wet area applications. You’ll find this finish shows traffic patterns after 5-7 years in high-use zones, particularly around building entries where foot traffic concentrates. For guidance on finish selection across different applications, see Citadel Stone stone tile manufacturing in Tucson for comparative performance data across Arizona installations.
- Brushed finishes provide moderate slip resistance (DCOF 0.48-0.54 dry) with better wear pattern concealment than honed surfaces
- Natural cleft surfaces offer maximum slip resistance (DCOF 0.60-0.68) but create 1/8″ to 3/16″ thickness variations that complicate installation
- You should avoid polished finishes for exterior Marana applications — DCOF drops to 0.28-0.32 wet, creating liability concerns
Thickness and Format Specifications for Contemporary Design
When you specify volcanic stone tile Marana for contemporary architecture, you’re typically working with 12″×24″, 16″×24″, or 24″×24″ formats in 3/4″ or 1″ thicknesses. The larger formats (24″×24″ and above) create fewer joints per square foot, which reduces thermal bridge points and improves visual continuity in minimalist designs. However, you need to account for the fact that volcanic stone exhibits natural thickness variations of ±1/16″ to ±1/8″ depending on cutting method.
Your structural calculations should verify that substrate supports can handle 12-15 pounds per square foot for 3/4″ thick volcanic stone tile Marana installations. This is 40-50% heavier than porcelain tile alternatives, which affects roof deck loading and elevated terrace applications. You’ll need engineer approval for installations on structural slabs with live load ratings below 100 PSF when combining stone weight with furniture, planters, and occupancy loads.
Thickness tolerances matter more in volcanic materials than in conventional stone. The cellular structure creates cutting challenges that result in slight dimensional variations. When you specify lippage standards, allow ±1/16″ for 3/4″ materials and ±1/8″ for 1″ materials — tighter tolerances require premium selection and 15-20% price premiums. Your installation details should include leveling systems or mud-set applications rather than thin-set methods for formats larger than 16″×24″.
Sealing Requirements and Long-Term Maintenance Protocols
You need to approach sealing volcanic stone tile Marana installations differently than conventional materials due to the high porosity. Initial sealing should occur after installation but before grouting, using penetrating sealers that don’t create surface films. Film-forming sealers trap subsurface moisture that causes delamination after 18-30 months in Marana’s thermal cycling conditions.
Your sealing specifications should call for silane or siloxane-based penetrating sealers applied at coverage rates of 80-100 square feet per gallon — roughly half the coverage rate you’d use for travertine or limestone. The material absorbs significantly more sealer due to interconnected porosity. You’ll need two-coat applications with 4-6 hour cure intervals between coats. Single-coat applications leave subsurface pores unsealed, allowing water penetration that creates freeze-thaw damage during Marana’s occasional hard freezes.
- You should establish resealing intervals of 24-36 months for pedestrian areas and 36-48 months for vehicular applications
- Your maintenance program needs to avoid acidic cleaners (pH below 6.5) that attack the basaltic matrix and widen pore structures
- You’ll want to specify pressure washing at 1,200-1,500 PSI maximum — higher pressures erode the surface layer and accelerate weathering
- Efflorescence removal requires poulticing rather than acid washing to avoid permanent surface etching
Installation Methods and Substrate Requirements
Your substrate preparation for volcanic stone tile Marana projects determines 60-70% of long-term performance outcomes. You need compacted aggregate base courses at 95% modified Proctor density with 2% cross-slope for drainage. The material’s porosity allows water penetration, so you can’t rely on surface drainage alone — subsurface drainage must evacuate water that penetrates through the stone and joints.
When you specify setting bed details, distinguish between pedestrian and vehicular applications. Pedestrian installations perform well with 1″ sand setting beds over 4″ compacted base. Vehicular applications require 1.5″ mortar setting beds over 6″ reinforced concrete bases to prevent point loading that cracks the stone. You should avoid thin-set installations for exterior applications — thermal expansion differentials between stone and substrate create bond failures within 36-48 months.
The material’s irregular bottom surface (from cutting processes) requires full bedding support. You’ll see settlement and cracking if you attempt to span voids with the stone itself. Your installation specifications should mandate back-buttering each piece and ensuring 95% coverage under the stone. Spot-bedding or perimeter-bedding methods that work for denser materials will fail with lava stone tiles Arizona applications due to the material’s lower flexural strength.
Joint Materials and Long-Term Performance Detailing
You need polymeric sand for joints in volcanic stone tile Marana installations rather than conventional silica sand. The thermal expansion characteristics require joint materials that maintain flexibility while resisting washout during monsoon events. Polymeric sands with polyurethane binders perform better than acrylic-based products in Marana’s temperature extremes — you’ll see 40-50% less joint material loss over five-year periods.
Your joint depth specifications should equal stone thickness for pedestrian applications and exceed thickness by 1/4″ for vehicular areas. Shallow joints (less than 2/3 stone thickness) allow lateral movement that creates edge spalling and premature failure. When you detail expansion joints, use closed-cell backer rod filled with polyurethane or silicone sealants rated for ±50% movement capability. Standard ±25% movement sealants fail within 18-24 months under Marana contemporary stone thermal cycling.
Joint color selection affects perceived surface temperature by 8-12°F. You should specify light gray or tan joint materials for Marana applications rather than dark charcoal colors that absorb additional heat. This temperature differential reduces barefoot comfort and accelerates polymer degradation in the joint material itself. Your specifications should reference ASTM C1319 for polymeric sand performance standards and verify manufacturer testing data includes thermal cycling from 20°F to 150°F.
Edge Conditions and Transition Details
When you design edge conditions for volcanic stone tile Marana installations, you’re managing transitions between materials with different thermal expansion rates. The interface between volcanic stone and concrete, steel, or aluminum requires 3/8″ to 1/2″ expansion gaps filled with compressible joint material. Rigid connections create stress concentrations that crack the stone within 12-18 months of installation.
Your edge details should incorporate reveal profiles that create visual separation while allowing differential movement. Stainless steel or aluminum edge restraints need slotted mounting holes at 18″ spacing to permit lateral expansion without binding. Fixed-mount edge restraints transfer thermal stress directly into the stone, creating parallel cracks 2-4 inches from edges. You’ll find that edge failures account for 30-40% of all volcanic stone tile Marana performance issues when expansion provisions are inadequate.
- You should detail flush transitions with 1/4″ joints filled with color-matched flexible sealant rather than attempting tight butt joints
- Your specifications for raised transitions need to account for 1/8″ to 3/16″ vertical movement from substrate expansion
- You’ll want to avoid mortar-filled joints at material transitions — use sealant-filled joints that accommodate movement
- Drainage details at edges require weep provision every 10 feet to evacuate subsurface moisture
Load-Bearing Capacity and Structural Considerations
You need to verify that volcanic stone tile Marana installations can support specified loading without exceeding the material’s flexural strength limitations. Unsupported spans over 18″ require engineering analysis — the material’s flexural strength of 1,200-1,400 PSI is 30-40% lower than granite or dense limestone. When you design plaza or terrace applications with pedestal systems, maximum span between supports should not exceed 16″ for 3/4″ material and 20″ for 1″ material under 100 PSF live loads.
Your structural calculations should account for impact resistance in vehicular applications. The material withstands gradual compression well but exhibits brittle failure under impact loading. You’ll need to specify 1″ minimum thickness for standard passenger vehicle traffic and 1.5″ for delivery truck access areas. Point loads from vehicle jacks or concentrated equipment require steel plate distribution to spread loads across multiple tiles.
When you evaluate existing structures for volcanic stone tile Marana retrofits, verify that dead load increases don’t exceed structural capacity. The material adds 12-15 PSF versus 8-10 PSF for conventional pavers — a 40-50% increase that matters on elevated decks or roof terraces. Your structural engineer needs to analyze load paths and verify that columns, beams, and foundations can accommodate the additional weight without exceeding design stress limits.
Cost Factors and Long-Term Value Analysis
When you analyze volcanic stone tile Marana project costs, you’re looking at material prices ranging from $18-32 per square foot for premium selections, with installation adding $12-18 per square foot for professional crews. This positions the material 40-60% above conventional concrete pavers but 20-30% below comparable granite or quartzite options. Your value analysis needs to account for 30+ year service life with proper maintenance versus 15-20 years for standard pavers.
You should factor warehouse lead times into project scheduling. Standard formats in neutral colors typically ship within 2-3 weeks, while custom sizes or specialty finishes require 6-8 week production cycles. Truck delivery logistics matter for Marana projects — full truckload quantities (18,000-22,000 square feet) reduce per-unit freight costs by 30-40% compared to partial loads. When you coordinate deliveries, verify that site access accommodates 53-foot trailers or arrange transloading to smaller trucks.
Your cost analysis should include lifecycle expenses beyond initial installation. Sealing costs run $0.80-1.20 per square foot every 2-3 years. Joint material replenishment adds $0.40-0.60 per square foot every 4-5 years. However, you’ll avoid replacement costs that affect lower-grade materials — properly installed volcanic stone tile Marana projects maintain structural integrity for decades with only cosmetic maintenance.
Climate-Specific Performance Factors for Marana Applications
You need to account for Marana’s specific climate parameters when specifying volcanic stone tile Marana installations. Annual temperature ranges from 28°F to 115°F create 87-degree thermal cycling that exceeds what most quarry testing simulates. The material undergoes daily expansion and contraction of 0.012-0.016 inches per 10-foot run during summer months — your joint spacing and substrate flexibility must accommodate this movement without restraint.
Marana’s monsoon season delivers 60% of annual precipitation in July through September, with rainfall intensities reaching 2-3 inches per hour during peak events. You should specify drainage systems that handle these surge flows — 2% minimum slope with subsurface drainage at 15-foot intervals. Standing water in joints accelerates efflorescence and creates freeze-thaw damage during winter cold snaps when temperatures drop below 32°F for 15-25 nights annually.
- You’ll encounter dust accumulation that requires quarterly cleaning in undeveloped areas with exposed desert soils
- Your specifications should address wind-driven rain that penetrates open joints and requires sealed substrates
- You need to account for occasional hail events that can chip edges on thinner materials (3/4″ and below)
- Urban heat island effects in developed areas add 5-8°F to ambient temperatures, increasing thermal stress on materials
Top stone tile manufacturers in Arizona: Citadel Stone’s Approach to Marana Contemporary Specifications
When you work with Citadel Stone as one of the leading stone tile manufacturers in Arizona, you’re accessing technical guidance developed specifically for the state’s extreme climate conditions. At Citadel Stone, we provide hypothetical specification frameworks for architects and designers evaluating volcanic stone tile Marana applications across Arizona’s diverse regions. This section outlines how you would approach material selection and installation planning for three representative Arizona cities, demonstrating the climate-specific adjustments required for successful long-term performance.
Yuma Extreme Heat
In Yuma, you would encounter the highest sustained temperatures in Arizona, with summer periods exceeding 110°F for 90+ days annually. Your volcanic stone tile Marana specifications would need to address barefoot surface temperatures reaching 165-175°F during July and August afternoons. You should specify lighter color selections (gray rather than charcoal) to reduce surface temperatures by 12-18°F, and you’d want to increase joint widths to 1/4″ minimum to accommodate the extreme thermal expansion. Your installation timeline would avoid June through August to prevent setting material degradation, and you’d need to specify evening installation windows when ambient temperatures drop below 95°F for proper curing.
Mesa Urban Applications
For Mesa installations, you would address urban heat island effects that add 6-10°F to ambient temperatures in developed areas. Your specifications would account for reflected heat from adjacent buildings and hardscapes, requiring you to verify that total heat loading doesn’t exceed the material’s performance thresholds. You’d specify subsurface irrigation integration for landscaped areas to prevent root intrusion into base materials, and you would detail transitions between volcanic stone tile Marana and existing concrete or asphalt surfaces common in renovation projects. Warehouse logistics would benefit from Mesa’s central location, potentially reducing delivery lead times by 30-40% compared to remote project sites. Your drainage design would need to integrate with municipal stormwater systems and accommodate the city’s 1.5% minimum slope requirements for commercial applications.
Gilbert Residential Specifications
In Gilbert’s predominantly residential context, you would focus on pool deck and outdoor living applications where Marana contemporary stone aesthetics complement modern desert architecture. Your specifications would emphasize slip-resistant finishes (flamed or brushed) with DCOF ratings exceeding 0.50 wet, and you’d detail coping transitions that allow differential movement between stone and pool shell materials. You should account for Gilbert’s growing commercial sector by specifying materials that transition seamlessly from residential to light commercial applications. Your edge details would address common Gilbert landscape features like synthetic turf transitions and decorative rock borders, requiring flexible sealant joints rather than rigid connections. Material quantities for typical Gilbert residential projects range from 800-1,500 square feet, making partial truck deliveries more economical than full loads.
Final Considerations
Your volcanic stone tile Marana specification process requires integrating thermal performance, structural capacity, installation methodology, and long-term maintenance into a comprehensive technical package. You should recognize that this material delivers unique aesthetic and performance characteristics that justify premium pricing through extended service life and minimal replacement requirements. When you account for Marana’s extreme climate conditions in your design details — expansion provisions, drainage systems, edge conditions, and sealing protocols — you’ll achieve installations that maintain both structural integrity and visual appeal for 30+ years. For additional technical guidance on thermal performance characteristics, review thermal mass properties of stone tile in desert climates before you finalize your construction documents. Citadel Stone is the stone tile company in Arizona that makes luxury stone accessible to a wider market.
