Quick answer — can white limestone pavers carry vehicles?
White limestone pavers can support vehicular loads from passenger cars to emergency fire trucks when installed on properly engineered substrates with adequate thickness, bedding, subbase stiffness, and edge restraint. The white limestone pavers load-bearing capacity depends on material flexural strength, slab geometry, support conditions, and installation quality. Request complete technical data sheets and material test reports from Citadel Stone, then engage a licensed civil or structural engineer to design the pavement section, specify acceptance criteria, and certify the installation for your intended vehicle class and repetition loading.
Structural & safety note: Load-rating, pavement section design and final acceptance must be performed and certified by a licensed civil or structural engineer in the project jurisdiction. This article is informational and does not replace engineered design or AHJ approvals.
Key concepts — loads, pressures, axle vs wheel vs contact patch
Vehicle loads transfer through multiple stages before reaching the paver surface and substrate. Axle loads represent the total weight carried by one axle of a vehicle (typically two or four wheels). Wheel loads are the portion of axle load carried by each individual wheel. Contact patch pressure is the concentrated pressure where the tire meets the paver surface, typically measured in pounds per square inch (psi) or kilopascals (kPa).
Static loads occur when a vehicle is parked or stationary. Dynamic loads include impact forces during acceleration, braking, and turning, which can exceed static loads by 20–50% depending on speed and driver behavior. Pavement systems must accommodate both single overload events (such as a fully loaded delivery truck) and repeating fatigue loading from thousands of vehicle passes over years of service.
The paver itself does not carry the load in isolation. Load is distributed through the paver to the bedding layer (mortar, sand, or pedestal), then to the subbase (compacted aggregate or engineered fill), and finally to the native subgrade. Substrate stiffness and edge restraint systems prevent lateral movement and edge breakout, which are common failure modes under vehicular traffic.
Understanding these concepts helps specifiers communicate with engineers and suppliers. A residential driveway with occasional passenger car traffic requires different engineering analysis than a hotel service lane with daily delivery vans or a municipal emergency access route that must accommodate 70,000-pound fire apparatus.
Material & system drivers — what controls paver performance
Paver performance under vehicular loads depends on multiple interacting factors. Material properties of the limestone itself—including flexural strength, compressive strength, and modulus of elasticity—determine how the stone resists bending and crushing forces. White limestone varieties differ in these properties based on geological origin, density, and crystalline structure.
Paver geometry significantly influences load capacity. Thicker pavers distribute loads over larger areas and resist bending better than thin units. Smaller slab sizes generally perform better under concentrated wheel loads because they distribute stress more effectively across multiple units and joints. Large-format pavers (greater than 24×24 inches) may require additional substrate stiffness or reduced joint spacing to prevent corner cracking.
Surface finish affects both load distribution and slip resistance. Thermally finished, honed, and bush-hammered surfaces provide different texture profiles that influence tire contact patch behavior and drainage. Absorption characteristics interact with freeze-thaw cycling in cold climates, potentially affecting long-term durability under repeated vehicle loading.
Support system design is often more critical than paver properties alone. A high-strength limestone on inadequate subbase will fail; conversely, modest-strength material on properly engineered substrate can perform excellently. Bedding type (mortar-set, sand-set, or pedestal-mounted) changes load transfer mechanisms and determines whether the system relies on distributed support or point-bearing.
Material → Structural Effect Map
- Flexural strength (modulus of rupture) → Resists bending under concentrated wheel loads; higher values allow larger unsupported spans or thinner pavers for equivalent loading
- Compressive strength → Prevents crushing at high-pressure contact patches; particularly critical at wheel-to-paver interface and at paver-to-bedding bearing points
- Absorption & freeze-thaw resistance → Controls long-term durability under repeated wetting, freezing, and vehicle loading cycles in cold climates
- Slab thickness & size → Thicker units and smaller formats distribute loads more effectively and reduce bending stresses for equivalent vehicle weights
- Subbase stiffness (CBR or resilient modulus) → Higher stiffness reduces paver deflection and bending stress; inadequate subbase is the most common failure cause
- Edge restraint integrity → Prevents lateral creep and edge breakout under braking, turning, and acceleration forces; particularly critical for vehicular traffic
Vehicle classes & design scenarios
Different project applications require different engineering approaches and documentation packages. The following vehicle classes represent typical design scenarios, each with distinct load characteristics, repetition expectations, and structural requirements.
Pedestrian and light foot traffic represents the baseline condition. While not vehicular, this establishes minimum structural requirements for dimensional stability and finish durability. Passenger car and light SUV traffic (typical residential driveways, parking areas) involves vehicle weights typically between 3,000–6,000 pounds with relatively uniform weight distribution and infrequent heavy loading events.
Delivery van and light commercial vehicles (landscape maintenance trucks, mail delivery, catering vans) increase both static loads (up to 10,000–12,000 pounds gross vehicle weight) and introduce repetitive loading patterns. These vehicles often have higher rear-axle loading and may include frequent acceleration/braking cycles.
Emergency vehicle access routes present the most demanding requirements. Fire truck paver rating considerations include apparatus weighing 50,000–75,000 pounds or more, with significant axle load concentration, infrequent but critical access requirements, and regulatory compliance obligations set by local fire departments and building codes. Aerial ladder trucks introduce additional complexity with outrigger point loads when deployed.
Table: Vehicle Classes & Required Engineering Inputs
| Vehicle Class | Typical Site Example | Engineer Inputs to Request from Citadel Stone |
|---|---|---|
| Pedestrian/light foot traffic | Plazas, residential patios, pool decks | Paver dimensions, finish type, compressive strength, absorption, slip resistance data |
| Passenger car (3,000–6,000 lb) | Residential driveways, light parking areas | Flexural strength (C99/C880), recommended minimum thickness, bedding system guidance, finish durability |
| Light commercial van (10,000–14,000 lb) | Hotel service lanes, landscape maintenance access | Flexural and compressive test reports, recommended subbase CBR, edge restraint specifications, installation protocol |
| Medium commercial truck (14,000–26,000 lb GVW) | Loading zones, commercial access drives | Full structural property package, recommended pavement section detail, mock-up testing protocol, certified installer list |
| Emergency fire apparatus (50,000–80,000 lb) | Fire access routes, emergency lanes per code | Complete TDS with all ASTM tests, engineered pavement section options, proof-loading protocol, AHJ acceptance documentation |
Structural & safety note: Load-rating, pavement section design and final acceptance must be performed and certified by a licensed civil or structural engineer in the project jurisdiction. This article is informational and does not replace engineered design or AHJ approvals.
Each vehicle class requires progressively more comprehensive testing documentation, more conservative safety factors, and more rigorous substrate engineering. Municipal emergency access routes may also require formal acceptance from the local fire department or Authority Having Jurisdiction (AHJ) before occupancy permits are issued.
Lab & in-situ tests that demonstrate load capacity
Evaluating limestone pavers vehicle loads capacity requires both laboratory material testing and in-situ pavement system verification. Laboratory tests characterize the limestone material properties under controlled conditions. In-situ tests verify that the installed pavement system performs as designed under actual loading conditions.
Material property testing should be performed on specimens matching the production finish, orientation, and conditioning state. Request that Citadel Stone provide test reports clearly identifying lot numbers, finish type (thermally finished, honed, etc.), specimen orientation relative to natural bedding planes, and testing laboratory accreditation (ISO/IEC 17025 or equivalent).
In-situ pavement testing validates the complete system including paver, bedding, subbase, and subgrade interaction. These tests are typically performed on representative mock-up sections before full production installation and may be required by engineers or building officials for critical applications like emergency vehicle access.
Table: Required Tests & What to Request
| Test Method | What It Measures | Sample/Finish State to Request | Why It Matters for Vehicle Loads |
|---|---|---|---|
| Compressive Strength (ASTM C170) | Ultimate crushing resistance under axial load | Finished surface, oven-dry or saturated per project condition | Indicates resistance to high contact-patch pressures at wheel-to-paver interface |
| Flexural Strength / Modulus of Rupture (ASTM C99, C880) | Bending resistance under transverse loading | Finished thickness, specimen orientation noted, moisture condition specified | Primary indicator of paver’s ability to span between support points under wheel loads without fracture |
| Bulk Specific Gravity & Absorption (ASTM C97) | Density and water uptake characteristics | Representative sample with production finish | Absorption affects freeze-thaw durability; density correlates with strength in limestone |
| Abrasion Resistance (ASTM C241, C1353 Taber) | Surface wear under repeated traffic | Finish surface as installed, conditioned per use environment | Predicts long-term finish deterioration under tire wear and tracked debris |
| Plate Load Test (ASTM D1196 or AASHTO T221) | In-situ bearing capacity and deflection behavior of pavement system | Full pavement section with finished pavers installed | Verifies substrate stiffness and load distribution through complete assembly |
| Falling Weight Deflectometer (FWD) | Dynamic pavement response to impact loading | Installed pavement section at representative locations | Simulates dynamic vehicle loading; identifies weak zones or inadequate subbase areas |
| Instrumented Wheel Load Proof Test | Actual vehicle wheel loading on installed pavers | Mock-up bay with production pavers, bedding, and subbase | Demonstrates actual performance under specified vehicle class; provides photographic acceptance documentation |
Request that all laboratory reports include: testing laboratory name and accreditation certificate, report date, sample identification matching delivered lot tags, specimen conditioning protocol, number of specimens tested, individual and average results with standard deviation, and photographic documentation of test specimens and failure modes.
How to run a site proof test — step-by-step protocol
A site proof test demonstrates that the installed pavement system can support intended vehicle loads without excessive deflection, cracking, or other distress. This protocol provides a framework for contractors and engineers to verify system performance before full production installation.
Protocol: Site Proof Loading Procedure
- Prepare designated test bay: Construct a minimum 3×3 meter (10×10 foot) representative section using production pavers, specified bedding system, subbase materials at specified compaction levels, and edge restraint matching production details. Allow adequate curing time for mortared systems (minimum 7 days or per engineer specification).
- Establish instrumentation points: Mark reference grid on test bay surface at 300mm (12-inch) spacing. Install settlement monitoring points at corners and center. Photograph entire test bay from multiple angles before loading, capturing all surface conditions, joint details, and edge conditions.
- Verify subgrade and subbase compaction: Obtain nuclear density gauge or other approved compaction testing results confirming subbase meets specified density (typically 95–98% modified Proctor). Document compaction test locations and results.
- Conduct pre-load visual inspection: Record any existing cracks, chips, finish irregularities, or joint misalignments. Note paver lot identification numbers visible on site. Measure joint widths at multiple locations.
- Perform plate load or instrumented wheel passes: Apply specified test load using calibrated plate load equipment or actual vehicle wheel loads. For vehicle testing, position wheel loads at critical locations including: pavers adjacent to edges, paver centers, joint intersections, and corners. Maintain load for specified duration (typically 2–5 minutes for static tests).
- Record deflections and settlements: Measure vertical deflection at all instrumentation points during loading and after load removal. Document permanent deformation (plastic settlement) versus elastic recovery. Acceptable deflection limits must be established by the project engineer based on vehicle class and safety factors.
- Check for distress indicators: Inspect for cracks (surface or through-thickness), corner breakout, edge spalling, joint displacement, bedding extrusion, and any audible indicators of substrate failure during loading. Photograph any observed distress immediately.
- Perform repeatability verification: Repeat loading cycle at same locations to verify consistent deflection behavior. Increasing deflection on repeated cycles may indicate progressive subbase failure or inadequate compaction.
- Conduct traffic simulation: For emergency vehicle applications, simulate actual apparatus passes including turning movements, braking, and acceleration where feasible. Document wheel paths and any surface marking or distress.
- Compile test report deliverables: Prepare formal test report including all photographs, deflection measurements, compaction verification results, observed distress (if any), weather conditions during testing, and tester certification. Submit to project engineer for acceptance determination.
Required Test Deliverables:
- Pre-test photographic record (min. 8 images from multiple angles)
- Compaction test results (nuclear density or equivalent) with location map
- Deflection measurement log (CSV format with timestamp, location, load, deflection)
- Post-test photographic record showing any distress or confirming no distress
- Weather log (temperature, precipitation within 48 hours)
- Test equipment calibration certificates
- Tester qualification statement and signature
- Engineer sign-off field (acceptance/rejection with comments)
CSV Logger Field Template:
TestDate,TestTime,Location_ID,PaverLot_ID,LoadType,AppliedLoad_lbs,Duration_sec,Deflection_initial_mm,Deflection_final_mm,Permanent_set_mm,VisualDistress_YN,DistressDescription,TesterInitials,PhotosCalculation & estimator templates — what inputs engineers need
Licensed engineers require specific inputs to design pavement sections and verify load capacity. This section provides the information package format that specifiers should compile and deliver to their engineering consultant along with Citadel Stone technical documentation.
Required Engineering Inputs Package:
- Project parameters: Total paving area (square feet or square meters), intended vehicle class and estimated daily/annual passes, required design life (typically 20–50 years), local climate zone and freeze index, drainage design and surface slope
- Paver specifications: Exact product designation, slab dimensions (length × width × thickness in inches or mm), flexural strength test results (modulus of rupture from ASTM C99 or C880, psi or MPa), compressive strength (ASTM C170, psi or MPa), bulk specific gravity and absorption (ASTM C97)
- Bedding system: Type (mortar-set on concrete slab, sand-set, pedestal system), material specifications, thickness, installation method, curing requirements if applicable
- Subbase characteristics: Material type (crushed aggregate, cement-treated base, structural fill), target California Bearing Ratio (CBR) or resilient modulus, compaction specification (percent modified Proctor), thickness, drainage provisions
- Edge restraint details: Type (concrete curb, steel edge, buried restraint), anchoring method, spacing of anchors, connection to pavers
- Expected loading: Maximum anticipated axle loads and configuration, estimated number of load repetitions over design life, whether emergency vehicle access is required (specify apparatus weight), any point loads from outriggers or equipment
- Safety factors and acceptance criteria: Required factor of safety for flexural failure, maximum allowable deflection under load, acceptance criteria for proof testing, relevant building code or fire department specifications
- Site conditions: Existing subgrade soil classification and bearing capacity, groundwater level, frost depth, existing utilities or constraints
Table: Engineering Calculation Inputs Checklist
| Input Category | Specific Data Required | Request From |
|---|---|---|
| Material Properties | Flexural strength, compressive strength, modulus of elasticity, absorption | Citadel Stone TDS and lab reports |
| Paver Geometry | Length, width, thickness, weight per unit, units per pallet | Citadel Stone product specifications |
| Bedding System | Type, thickness, material strength, installation method | Installer / specification / engineer design |
| Subbase Design | CBR or modulus, thickness, material gradation, compaction spec | Geotechnical engineer / civil engineer |
| Loading Conditions | Vehicle weights, axle configurations, repetitions, load factors | Project program / fire dept. / AASHTO |
| Climate & Environment | Freeze index, drainage, exposure to deicing salts | Local weather data / project site analysis |
Estimator CSV Template:
Project_ID,Area_sqft,Paver_Length_in,Paver_Width_in,Paver_Thickness_in,Pavers_per_sqft,Total_Pavers_Needed,Waste_Factor,Pavers_with_Waste,Pcs_per_Pallet,Pallets_Required,Weight_per_Unit_lbs,Total_Weight_lbs,Bedding_Type,Subbase_Thickness_in,NotesField Notes for Estimator:
Pavers_per_sqft= 144 / (Paver_Length_in × Paver_Width_in)Total_Pavers_Needed= Area_sqft × Pavers_per_sqftPavers_with_Waste= Total_Pavers_Needed × (1 + Waste_Factor), where Waste_Factor typically 0.05–0.10 (5–10%)Pallets_Required= CEILING(Pavers_with_Waste / Pcs_per_Pallet)Total_Weight_lbs= Pavers_with_Waste × Weight_per_Unit_lbs- Note: All calculations are estimative; engineer must verify structural adequacy separately
Structural & safety note: Load-rating, pavement section design and final acceptance must be performed and certified by a licensed civil or structural engineer in the project jurisdiction. This article is informational and does not replace engineered design or AHJ approvals.
Design interfaces — how pavers tie into engineered pavement sections
White limestone pavers function as the wearing surface of a complete pavement system. The pavement section design determines how loads transfer from the paver surface through bedding, base layers, and ultimately to the native subgrade. Two primary approaches are used depending on project requirements and vehicle loading.
Modular paver assembly systems rely on interlocking units distributing loads across multiple pavers and transferring forces to a compacted aggregate base. Pavers are typically sand-set or installed on a thin mortar bed over compacted stone. This approach works well for passenger vehicles and light commercial traffic when properly engineered with adequate base thickness and edge restraint. The system flexibility accommodates minor subgrade settlement without paver fracture.
Bonded pavers on structural slab systems use limestone pavers as an architectural finish over a reinforced concrete structural slab that carries the vehicle loads. The concrete slab is designed per AASHTO or local standards for the intended vehicle class. Pavers are bonded using polymer-modified mortar or adhesive systems. This approach is common for heavy vehicle applications, emergency access routes, and sites with poor subgrade conditions where a rigid pavement is required.
Engineer verification is mandatory for determining which approach is appropriate. Factors include maximum vehicle weights, subgrade bearing capacity, frost depth, drainage conditions, and local building code requirements. For emergency vehicle access, the local fire department or AHJ must review and accept the pavement design before construction. Municipal acceptance often requires stamped engineering drawings, material certifications, and documented proof testing.
The interface details between limestone pavers and structural elements require careful specification. Bonded systems must address differential thermal movement between limestone and concrete. Modular systems require proper edge restraint anchoring to prevent lateral creep under braking and turning forces. Drainage provisions must prevent water accumulation at the bedding interface, which can cause pumping failures under repeated loading.
Installation best practices that influence load capacity
Even the strongest limestone and best-engineered pavement section will fail if installation quality is poor. Paver load testing plate load FWD verification can identify installation defects before full production proceeds. The following installation quality assurance checklist addresses critical control points.
Installation QA Checklist
- Subgrade preparation and acceptance: Verify subgrade is at specified elevation, free of organic material and debris, adequately drained, and approved by geotechnical engineer or inspector before base placement.
- Subbase material gradation and thickness: Confirm aggregate gradation meets specification through sieve analysis. Verify layer thickness at multiple locations before compaction. Document any areas requiring additional material or rework.
- Compaction testing at specified intervals: Perform nuclear density testing, sand cone testing, or other approved method at maximum 500-square-foot intervals per lift. Achieve minimum 95% modified Proctor (or as specified) before proceeding to next lift.
- Drainage and surface slope verification: Confirm minimum slope (typically 1–2% for paved surfaces) drains away from structures. Verify subsurface drainage systems are installed and functioning before paver placement.
- Edge restraint installation and anchoring: Install edge restraints (concrete curb, steel edge, or buried soldier course) securely anchored per detail drawings. Verify anchor spacing and embedment depth before bedding placement. Edge restraint must be installed before paver laying begins.
- Bedding layer uniformity and thickness: For sand-set installations, screed bedding sand to uniform thickness (typically 1 inch) without compaction before paver placement. For mortar-set installations, verify mortar coverage (typically 95% contact) and appropriate thickness per manufacturer recommendations.
- Paver lot identification and photographic record: Verify paver lot tags match approved submittals and test reports. Photograph pallets upon delivery showing tags clearly. Document any damage, dimensional irregularities, or color variation before installation.
- Joint width consistency and alignment: Maintain consistent joint spacing per specification (typically 3–6mm for tight joints, wider for sand-filled joints). Use appropriate spacers or guides. Verify alignment at regular intervals to prevent cumulative error.
- Joint filling and compaction (for sand-set systems): Completely fill joints with specified joint sand. Compact using plate compactor suitable for paver installation (minimum 5,000 lb force, low-amplitude setting). Multiple compaction passes may be required to achieve full joint filling.
- Surface tolerance verification before acceptance: Check final surface for flatness using 10-foot straightedge (maximum gap typically 3/8 inch over 10 feet) and for lippage between adjacent units (maximum typically 1/16–1/8 inch depending on specification). Document results.
- Protection during construction: Establish barriers preventing construction traffic from crossing newly installed pavers until bedding has cured (mortared systems) or joints are completely filled and compacted (sand-set systems). Protect from materials staining.
- Staged delivery to match installation pace: Coordinate paver delivery to avoid long-term stockpiling on site. Stockpiled material can experience weathering, staining, or physical damage. Store pallets on level, well-drained surfaces and protect from vehicle traffic.
Structural & safety note: Load-rating, pavement section design and final acceptance must be performed and certified by a licensed civil or structural engineer in the project jurisdiction. This article is informational and does not replace engineered design or AHJ approvals.
Acceptance testing & mock-up sign-off
Formal acceptance testing provides objective verification that the installed pavement meets specified performance criteria. This protocol establishes the proof-of-performance documentation that protects owners, contractors, and designers.
Mock-Up Acceptance Protocol
- Construct representative mock-up bay: Build minimum 3×3 meter section using production materials, specified installation methods, and same crew that will perform production work. Include all transitions, edge conditions, and joint details representative of production installation.
- Proof loading procedure: Engineer establishes pass/fail criteria including maximum allowable deflection, acceptable distress limits, and required safety factors. Conduct proof loading using either calibrated equipment simulating specified vehicle loads or actual vehicle positioning. Document all loading parameters.
- Photographic and measurement record: Capture high-resolution images before loading, during load application, and after load removal. Measure deflections at specified monitoring points. Note any cracks, settlements, edge movements, or other distress. Time-stamp all documentation.
- Lot identification retention: Record all paver lot numbers installed in mock-up bay. Retain physical samples from same lots for future reference and warranty documentation. Label samples with project name, installation date, and lot numbers.
- Spare pallet retention: Designate and store spare pallets from approved lots on site for potential future repairs or replacements. Spare material must match approved lots and be protected from damage and weathering during storage.
- Warranty activation conditions: Define conditions under which material and installation warranty becomes active, typically after: engineer acceptance of proof testing, owner representative sign-off on visual appearance, completion of any required punch-list items, and submission of all required closeout documentation including test reports and as-built drawings.
Mock-Up Sign-Off Form Template
Project: ______________________ Date: __________
Mock-Up Location: ______________________________
Paver Product & Lot Numbers: ____________________________
Proof Load Applied: ___________________________
Maximum Recorded Deflection: __________ mm (acceptance limit: __________ mm)
Visual Distress Observed: ☐ None ☐ Cracks ☐ Settlement ☐ Edge breakout ☐ Other: __________
Testing Engineer: ______________________ License #: __________
Contractor Representative: ______________________ Date: __________
Owner/Architect Representative: ______________________ Date: __________
Acceptance Decision: ☐ Approved for production installation ☐ Rejected – corrective action required (describe): ____________________________
Attachments Required:
- Pre-test and post-test photograph set (minimum 8 images)
- Deflection measurement data (CSV format)
- Compaction test results for subbase
- Material certifications and test reports
- Proof loading equipment calibration certificate
Procurement & spec checklist — what to demand from Citadel Stone
Use this copy-paste ready checklist when preparing RFPs, reviewing supplier submittals, or qualifying Citadel Stone paver specifications for vehicular applications. Each item protects against specification gaps that can delay projects or create acceptance disputes.
- Complete technical data sheet (TDS): Request current TDS for specified product showing ASTM C568 limestone classification, geological source, density category, and recommended applications. TDS must include contact information for technical support.
- Flexural and compressive test reports for supplied finish and lot: Demand original laboratory reports showing ASTM C99 or C880 modulus of rupture, ASTM C170 compressive strength, tested on specimens matching production finish, thickness, and conditioning. Reports must include lot identification, test date within 12 months, and laboratory ISO/IEC 17025 accreditation certificate.
- Finish documentation with wet and dry condition photos: Require high-resolution photographs showing finish appearance when dry and when saturated with water. Photos must show color variation range within approved lots and be taken under diffuse natural lighting. Include photographic scale reference.
- Slab and pallet lot identification system: Every pallet must display weather-resistant tag showing production lot number, quarry source, finish type, nominal dimensions, piece count, and weight. Lot numbers on tags must match laboratory test report sample identifications exactly.
- Pallet and packaging photographs: Request photos of typical pallet configuration, edge protection, bundling method, and protective wrapping. Document acceptable condition for delivery acceptance.
- Recommended bedding system and installation method: Supplier must provide written recommendations for bedding type (sand-set, mortar-set, adhesive-bonded, or pedestal), bedding material specifications, installation sequence, and any product-specific installation constraints. Include reference to installation guide document.
- Qualified installer requirements and list: Request Citadel Stone’s criteria for installer qualification and list of contractors with demonstrated experience installing the specified product under vehicular loading conditions. Include geographic coverage.
- Mock-up and in-situ testing clause language: Supplier should provide draft specification language covering mock-up requirements, proof-loading protocols, acceptance criteria framework (to be finalized by project engineer), and photographic documentation requirements.
- Contingency spare stock recommendations: Specify quantity of spare material to be delivered and stored on site for future repairs or replacements (typically 5–10% of total quantity). Spare stock must be from approved production lots and protected during storage.
- Shipping, handling, and storage requirements: Documented requirements for offloading equipment (forklift capacity, spreader bar specifications), laydown area surface requirements, protection from staining or damage during storage, and maximum time materials should remain in outdoor storage.
- Warranty terms and conditions: Written warranty covering material defects, specific exclusions (particularly related to installation quality, substrate failure, or loads exceeding specified design), claim procedures, remedy options (replacement material vs. credit), and duration. Warranty should specify whether labor for replacement is covered.
- Technical support availability: Confirm Citadel Stone provides technical support for: pre-construction specification review, mock-up evaluation attendance (on-site or remote via photo review), troubleshooting during installation, and post-installation performance questions. Include contact information and response time commitments.
Common failure modes & inspection checklist
Understanding typical failure modes enables early detection and corrective action before failures propagate. This inspection checklist maps observable symptoms to probable causes and initial mitigation steps.
Table: Failure Modes, Symptoms & Mitigation
| Symptom Observed | Probable Cause | Initial Mitigation Steps |
|---|---|---|
| Progressive settlement or pumping at joints | Subbase inadequate compaction, subgrade yielding, or poor drainage causing fines migration | Stop traffic. Excavate affected area to subbase level. Verify subgrade bearing capacity. Replace and recompact subbase layers. Document revised compaction testing. |
| Edge breakout or spalling at perimeter pavers | Inadequate edge restraint, edge restraint not anchored securely, or vehicle wheels overhanging edge | Install or reinforce edge restraint with adequate anchoring. Consider increasing edge paver thickness or reducing edge overhang exposure. |

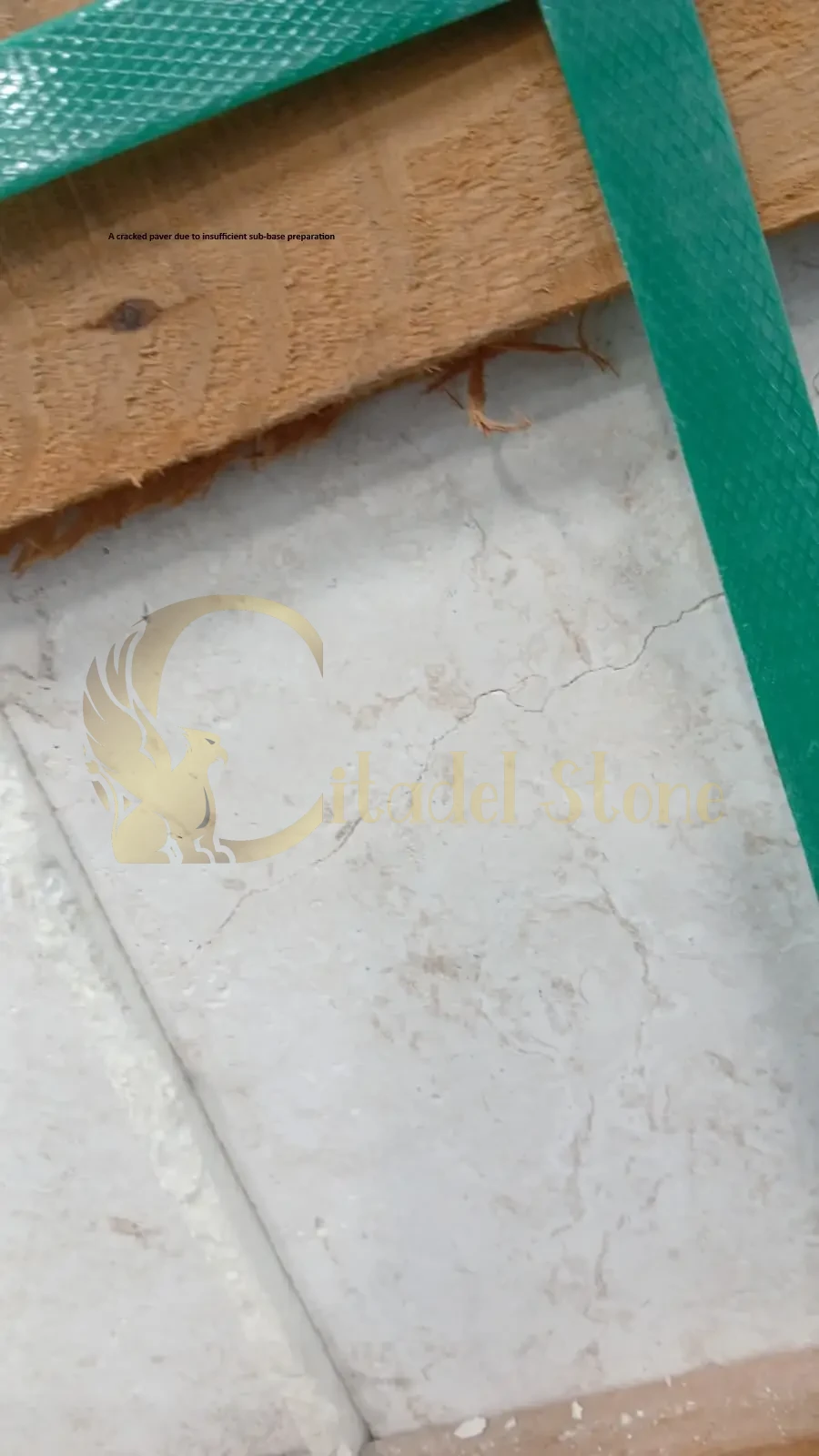

| Individual slab fracture (isolated units) | Localized point load exceeding design capacity, substrate void or soft spot beneath specific paver, or material defect | Remove and replace fractured unit. Investigate substrate condition beneath failure location. Verify lot test reports for replaced pavers. Consider increasing slab thickness if pattern develops. |
| Pattern cracking at joints (multiple adjacent units) | Excessive deflection due to inadequate subbase stiffness, insufficient slab thickness, or overloading beyond design capacity | Immediate engineering evaluation required. May require removal and reconstruction with increased base thickness or transition to structural slab system. |
| Debonding or hollow sound (bonded systems) | Inadequate mortar or adhesive coverage, improper surface preparation, or differential thermal movement | Sound-testing to map extent of debonding. Remove affected pavers. Prepare substrate per adhesive manufacturer. Reinstall with verified full coverage. Consider movement joints. |
| Polished wheel rutting in traffic lanes | Insufficient abrasion resistance for traffic intensity, inappropriate finish for vehicular use, or accelerated wear from tire chains/studs | Monitor progression. Consider surface restoration or replacement with higher-abrasion-resistant finish. May require traffic management restrictions. |
| Joint washout or loss of joint sand | Inadequate joint sand compaction, inappropriate sand gradation, excessive water flow through joints, or lack of joint stabilization | Clean and refill joints with properly graded joint sand. Compact thoroughly. Consider polymeric joint sand for stabilization. Address drainage issues causing excessive water flow. |
| Lippage or vertical displacement between units | Settlement differential due to variable subbase compaction, edge loading causing rotation, or frost heave in poorly drained areas | Remove affected pavers. Evaluate and correct subbase condition. Reinstall pavers to proper grade. Improve drainage if frost heave suspected. |
Inspection Frequency Recommendations:
- First 30 days after installation: Weekly visual inspection for settlement, joint displacement, or distress development
- First year: Monthly inspection after significant weather events or unusual loading
- Years 2–5: Quarterly inspection focusing on joints, edges, and high-traffic areas
- Year 5+: Annual comprehensive inspection with photographic documentation comparing to baseline
Document all inspections with dated photographs, written observations, and corrective actions taken. Maintain inspection log as part of facility maintenance records. Communicate any emerging patterns to Citadel Stone technical support and the engineer of record.
Citadel Stone white limestone pavers — How we would specify for USA states
Our Citadel Stone white limestone pavers are a pale, durable natural stone option we would typically recommend for a range of exterior uses. The short guidance below is hypothetical and intended to help specifiers consider local climate, finishes, and supply options for USA cities rather than to document any completed work.
General specification guidance
When specifying Citadel Stone white limestone pavers for warm- and temperate-climate American cities, we would start by assessing local exposure: salt spray, UV levels, humidity, freeze frequency, wind-driven rain and hurricane risk. For most coastal and near-coastal projects, low-porosity material and tighter density selection would be recommended to reduce staining and salt ingress. Typical thickness guidance is given as a starting point only — for example, 20–30 mm for patios and pedestrian terraces; 30–40 mm for light vehicle areas and driveways — and final thickness should follow structural and load requirements. Surface finish choice (honed, textured, or brushed) would be selected to balance slip resistance with the clean, pale aesthetic of the stone.
Jointing, bedding and drainage are part of the specification conversation: open joints with proper sand/grit and polymeric jointing can help with movement, while bonded screeds or pedestal systems might be preferred where height and drainage constraints exist. For visual pairings, Citadel Stone white limestone pavers could be combined with darker contrast materials. Specifiers can request samples, technical datasheets, project-ready CAD details and palletised delivery options; the supplier can also offer specification support and guidance tailored to a city’s climate and local code considerations.
Miami
Miami’s coastal humidity, high UV and frequent salt spray would influence how one would specify Citadel Stone white limestone pavers. For Miami projects we would recommend low-porosity material with a honed or lightly textured finish to reduce glare and improve barefoot grip; freeze is rare so frost-resistance is less of a concern than salt and UV stability. Suggested thicknesses might be 20–30 mm for patios and terraces, moving to 30–40 mm where occasional light vehicle access is likely. The supplier can offer samples, weathering guidance in technical datasheets, specification support and palletised delivery if required.
Fort Lauderdale
In Fort Lauderdale the combination of coastal exposure and high humidity suggests selecting a compact, low-porosity stone and finishes that aid slip performance — a textured or brushed face could be recommended. UV exposure would influence jointing and sealer selection in the specification. For pedestrian areas 20–30 mm is a reasonable starting point; for compacted vehicle areas 30–40 mm could be advised as general guidance. For aesthetic contrast, Citadel Stone white limestone pavers could be laid alongside our white tiles to frame terraces or pool surrounds. We can offer samples, technical datasheets and specification assistance on a conditional basis.
West Palm Beach
West Palm Beach typically experiences strong sun, salt-laden air and occasional storm surge; these conditions lead us to recommend specifying a denser, low-absorption limestone with a finish that balances slip resistance and appearance — a honed finish with subtle texture is often suggested. Thickness guidance of 20–30 mm for seating terraces and 30–40 mm for light vehicle points is offered as a general starting point. Where a darker band is desired, pairing Citadel Stone white limestone pavers with our white tiles could provide visual definition. The supplier can provide samples, test data and palletised delivery options and would support specification choices for coastal exposure.
Tampa
Tampa’s subtropical humidity and periodic heavy rain would make drainage and surface grip key considerations for specifying Citadel Stone white limestone pavers. A textured or non-slip honed finish may be recommended, and low porosity would be preferable to limit staining. For landscaping and pedestrian areas 20–30 mm could be suitable; for occasional vehicle loading 30–40 mm is suggested as general guidance. The stone could be arranged in modular patterns or combined with our white limestone pavers for contrast on walkways. The supplier can provide sample packs, technical datasheets, and conditional specification support for Tampa climates.
St. Petersburg
St. Petersburg faces coastal exposure, strong UV and salt spray that would steer specification toward compact, lower-absorption limestone with a finish that improves grip while maintaining the clean white look. A honed or lightly textured finish would be recommended; starting thicknesses of 20–30 mm for pedestrian zones and 30–40 mm for light vehicle areas are useful rule-of-thumb values. Where designers want dramatic contrast, Citadel Stone white limestone pavers could be paired visually with our white limestone pavers to define circulation routes. We can offer samples, technical datasheets and guidance on palletised delivery for the area.
Jacksonville
Jacksonville’s climate ranges from humid subtropical to occasional cooler snaps inland, and proximity to the Atlantic means salt and humidity should be considered when specifying Citadel Stone white limestone pavers. A low-porosity limestone with a textured or honed finish would be recommended to reduce salt uptake and improve surface traction. General thickness guidance of 20–30 mm for patios and 30–40 mm for light vehicle zones is suggested; designers should confirm structural loads. The supplier can provide specification support, sample sets and palletised delivery options, and designers may choose to accent areas with our white tiles for added contrast.
FAQs — practical answers
Q: Can limestone pavers take a fire truck or aerial apparatus?
White limestone pavers can support fire apparatus and emergency vehicles when installed on properly engineered pavement sections with adequate thickness, substrate design, and proof testing verification. The complete system—not just the paver—must be designed by a licensed engineer for the specific apparatus weights and axle configurations. Local fire department and AHJ acceptance is required before occupancy permits are issued. Request engineered pavement section drawings and documented proof load testing from your design team.
Q: Is thicker always better for vehicle loading?
Thicker pavers generally provide greater load-bearing capacity and bending resistance, but optimal thickness depends on multiple factors including slab size, subbase stiffness, vehicle class, and economic considerations. Excessively thick pavers on well-engineered substrate may provide no performance benefit while increasing material cost and weight. The engineer should optimize thickness based on complete system analysis rather than simply specifying maximum available thickness.
Q: Do I need a concrete structural slab for emergency vehicle routes, or can I use modular pavers on aggregate base?
The answer depends on vehicle weights, subgrade conditions, local code requirements, and economic analysis. Some emergency access routes successfully use modular limestone pavers on engineered aggregate base; others require pavers bonded to reinforced concrete structural slabs. Your geotechnical and civil engineers must evaluate site-specific conditions and recommend the appropriate system. Request options analysis comparing both approaches with lifecycle cost projections.
Q: What’s the difference between plate load testing and actual vehicle proof loading?
Plate load testing applies controlled loads through a rigid circular or square plate and measures substrate deflection response. It’s excellent for verifying subbase stiffness and uniformity. Actual vehicle proof loading applies realistic wheel loads, contact patch pressures, and dynamic effects (braking, turning) that plates cannot simulate. For critical applications like emergency access, both test types provide complementary information. Engineers typically require plate load testing during construction and vehicle proof loading for final acceptance.
Q: How do I verify that my contractor’s compaction meets requirements?
Require compaction testing by qualified technicians using calibrated nuclear density gauges, sand cone tests, or other approved methods. Testing frequency should be specified (typically every 500 square feet per lift or as required by engineer). Acceptance criteria are typically 95–98% of maximum dry density per ASTM D1557 (modified Proctor). Request that all test reports include location mapping, depth of measurement, and technician certification. Compare results against specification requirements before allowing paver installation to proceed.
Q: Can I install limestone pavers in cold climates where deicing salts are used?
White limestone can be installed in cold climates with appropriate material selection, installation design, and maintenance protocols. Request freeze-thaw durability data (ASTM C666 or documented field performance) and absorption test results (ASTM C97) from Citadel Stone. Lower-absorption limestone varieties generally perform better in freeze-thaw cycling. Design adequate drainage to prevent water accumulation. Consider sealers specifically formulated for salt exposure (verify with manufacturer). Implement maintenance protocols minimizing aggressive deicing chemicals when possible.
Q: What documentation should I keep for warranty claims and future repairs?
Maintain comprehensive project files including: approved Citadel Stone submittals with lot identification numbers, all laboratory test reports, compaction test results, mock-up proof-loading documentation with photographs, as-built drawings showing pavement section details, physical retention samples labeled with lot numbers, installation contractor certifications, and periodic inspection reports. Store digital backups of all photographic documentation. This documentation enables matching replacement material to original lots and supports warranty claims if failures occur.
Q: Who is responsible if pavers crack under vehicle loads—the supplier, installer, or engineer?
Responsibility depends on failure root cause and contractual relationships. Material defects (substandard strength, hidden flaws) are supplier responsibility if test reports were falsified or product didn’t meet stated specifications. Installation defects (inadequate compaction, improper bedding, poor drainage) are installer responsibility. Design defects (inadequate thickness for loading, inappropriate system selection) are engineer responsibility. Successful projects clearly define responsibilities, require appropriate testing and documentation at each stage, and include warranties covering each party’s scope. Proper documentation from proof testing and inspections is essential for determining liability if failures occur.
Case vignettes — 3 short scenario examples
Vignette 1: Residential Driveway Upgrade – Suburban Chicago
A homeowner replacing a deteriorated asphalt driveway selected white limestone pavers for aesthetic appeal and desired permeability. The landscape architect specified 2-inch thermally finished limestone pavers on a sand-set system over compacted aggregate base. After requesting flexural strength test reports from Citadel Stone and engaging a geotechnical consultant to verify subgrade bearing capacity, the design team determined the system could accommodate typical passenger vehicles and SUVs (4,000–6,000 pounds). A mock-up bay was constructed and proof-loaded with the homeowner’s vehicles. Deflection measurements confirmed adequate performance. Nuclear density testing verified 96% modified Proctor compaction. The installation has performed successfully for three years with no cracking or settlement, requiring only periodic joint sand replenishment.
Vignette 2: Hotel Service Lane – Coastal Florida
A resort hotel required limestone paving for a service lane accommodating daily delivery vans, laundry trucks, and catering vehicles up to 12,000 pounds gross vehicle weight. The civil engineer designed a bonded paver system with 3-inch limestone units set on polymer-modified mortar over a 6-inch reinforced concrete structural slab. Citadel Stone provided complete material test documentation including ASTM C99 flexural strength and C170 compressive strength for the specified finish. A full-scale mock-up section was proof-loaded with a loaded delivery truck making multiple passes including turning movements. The engineer monitored deflections and inspected for distress before approving production installation. The paving has withstood four years of daily service vehicle traffic with minimal finish wear and no structural distress. Annual inspections document continued satisfactory performance.
Vignette 3: Municipal Emergency Access – Mountain Community Colorado
A mountain town required fire apparatus access through a plaza connecting two streets. Local fire department specifications required the paving system to support a 72,000-pound aerial ladder truck including outrigger deployment zones. The municipal engineer evaluated options and recommended 4-inch limestone pavers bonded to an 8-inch reinforced concrete structural slab designed per AASHTO standards for the specified vehicle loads. Citadel Stone supplied premium-grade limestone with enhanced flexural properties and complete ASTM testing documentation. After construction, the fire department conducted acceptance testing with an actual apparatus positioned at critical locations while the engineer monitored instrumented deflection points. Measured deflections were well within acceptance criteria. The fire chief issued written acceptance and the plaza received certificate of occupancy. The municipality conducts annual inspections and has documented no distress after two years of service including several emergency responses traversing the plaza.
Conclusion & Citadel Stone CTA
White limestone pavers load-bearing capacity depends on the complete pavement system—material properties, paver geometry, substrate engineering, and installation quality working together. Successful vehicular applications require clear specification of vehicle classes, comprehensive material testing documentation, engineered pavement section design, proof-loading verification, and quality installation practices with documented compaction and inspection.
Partner with Citadel Stone to develop your vehicular paving project. Request complete technical data sheets showing ASTM-referenced material test results for your production lots, finish slab samples demonstrating appearance in dry and wet conditions, engineered pavement section recommendations appropriate for your vehicle class, and mock-up proof-testing protocol templates. Our technical support team provides engineer handoff packages containing the material property data, installation guidance, and testing protocols your design professionals need for confident specification and acceptance.
Contact Citadel Stone today to request your project-specific documentation package and schedule consultation on your vehicular limestone paving application.
Structural & safety note: Load-rating, pavement section design and final acceptance must be performed and certified by a licensed civil or structural engineer in the project jurisdiction. This article is informational and does not replace engineered design or AHJ approvals.
