Quick Answer — What This Specification Sheet Provides
This specification sheet delivers everything needed to specify, procure, and accept limestone pavers for Arizona projects: comprehensive testing requirements (water absorption, compressive strength, freeze-thaw resistance), installation specifications (base depths, jointing, edge restraint), acceptance criteria (tolerances, flatness, lot matching), copy-paste contract language for procurement documents, city-specific selection guidance (Phoenix thermal requirements, Flagstaff frost ratings, Tucson dust considerations), and downloadable checklists for buyers and contractors. Immediate action: Request lot-specific datasheets and staged sample boards before committing to material purchases—testing abstracts and showroom samples provide insufficient assurance for long-term Arizona performance. Request Citadel Stone Datasheet & Staged Sample Board for your specific project requirements.
How to Read a Limestone Datasheet
Typical physical properties (absorption, density, porosity)
Water absorption (%): Measures percentage of water absorbed by weight after 48-hour immersion per ASTM C97. Lower values indicate denser stone with better stain resistance, freeze-thaw performance, and longevity. Typical ranges and interpretations (Arizona applications): <1% excellent (premium dense limestone, suitable for all applications including pool edges and freeze-thaw zones), 1–2% very good (standard for high-quality exterior pavers, acceptable for most Arizona uses), 2–3% good (acceptable for pedestrian patios in Phoenix/Tucson, marginal for Flagstaff or pool surrounds), 3–5% marginal (requires sealing and perfect drainage, not recommended for wet zones or cold climates), >5% poor (not recommended for exterior Arizona use—high staining and freeze-thaw risk).
Bulk density (kg/m³ or lb/ft³): Mass per unit volume, typically 2,200–2,700 kg/m³ (137–168 lb/ft³) for limestone. Higher density correlates with lower absorption and better durability. Dense limestone (>2,500 kg/m³) performs better in demanding applications (driveways, freeze-thaw zones, heavy traffic).
Apparent porosity (%): Volume percentage of open pores. Related to absorption but measures void space rather than water uptake. Target <6% for exterior Arizona use. High porosity (>10%) indicates soft, weather-susceptible stone requiring protective measures or alternative material selection.
Mechanical properties (compressive strength, modulus)
Compressive strength (psi or MPa): Resistance to crushing under vertical load, tested per ASTM C170. Typical values and minimum thresholds: 6,000–8,000 psi adequate for pedestrian patios, 8,000–12,000 psi recommended for high-traffic or driveway applications, >12,000 psi premium dense limestone suitable for all uses including vehicular. Compressive strength below 6,000 psi indicates soft limestone requiring thicker units or alternative applications (wall cladding vs. paving).
Modulus of rupture/flexural strength (psi or MPa): Resistance to bending, tested per ASTM C99 or C880. Less commonly reported than compressive strength but valuable for predicting real-world performance under distributed loads. Typical range 800–1,500 psi for quality limestone. Higher values allow larger-format pavers (24″×48″+) without mid-span cracking risk.
Modulus of elasticity (psi or GPa): Measures stiffness—how much stone deflects under load. Higher values indicate stiffer material less prone to flexural cracking. Useful for engineering calculations when designing structural applications or large-format installations.
Durability properties (freeze-thaw, abrasion, salt scaling)
Freeze-thaw cycle resistance (ASTM C666 or C1026): Subjects samples to rapid freezing and thawing cycles (typically 50–300 cycles), measuring weight loss and visual degradation. Acceptance criteria for Arizona high-altitude use: <5% weight loss after 50 cycles indicates adequate frost resistance for Flagstaff/Prescott, <2% weight loss after 100 cycles indicates excellent resistance for all Arizona applications, >10% weight loss or visible spalling/cracking indicates material unsuitable for freeze-thaw exposure.
Abrasion resistance (ASTM C241 or C1353): Measures surface wear from foot traffic or mechanical abrasion. Reported as volume loss or wear index. Lower values indicate harder, more wear-resistant stone. Critical for high-traffic commercial applications; less critical for residential patios where aesthetic wear (patina development) may be desirable.
Salt scaling resistance (ASTM C672): Evaluates surface degradation under combined salt exposure and freeze-thaw cycles—simulates winter deicing conditions. Rating scale: 0 = no scaling (excellent), 1 = slight scaling (acceptable), 2 = moderate scaling (marginal for deicing zones), 3+ = severe scaling (unsuitable for deicing exposure). Essential test for Flagstaff installations where winter deicing occurs.
Finish, tolerances & dimensional data (thickness, edge tolerances)

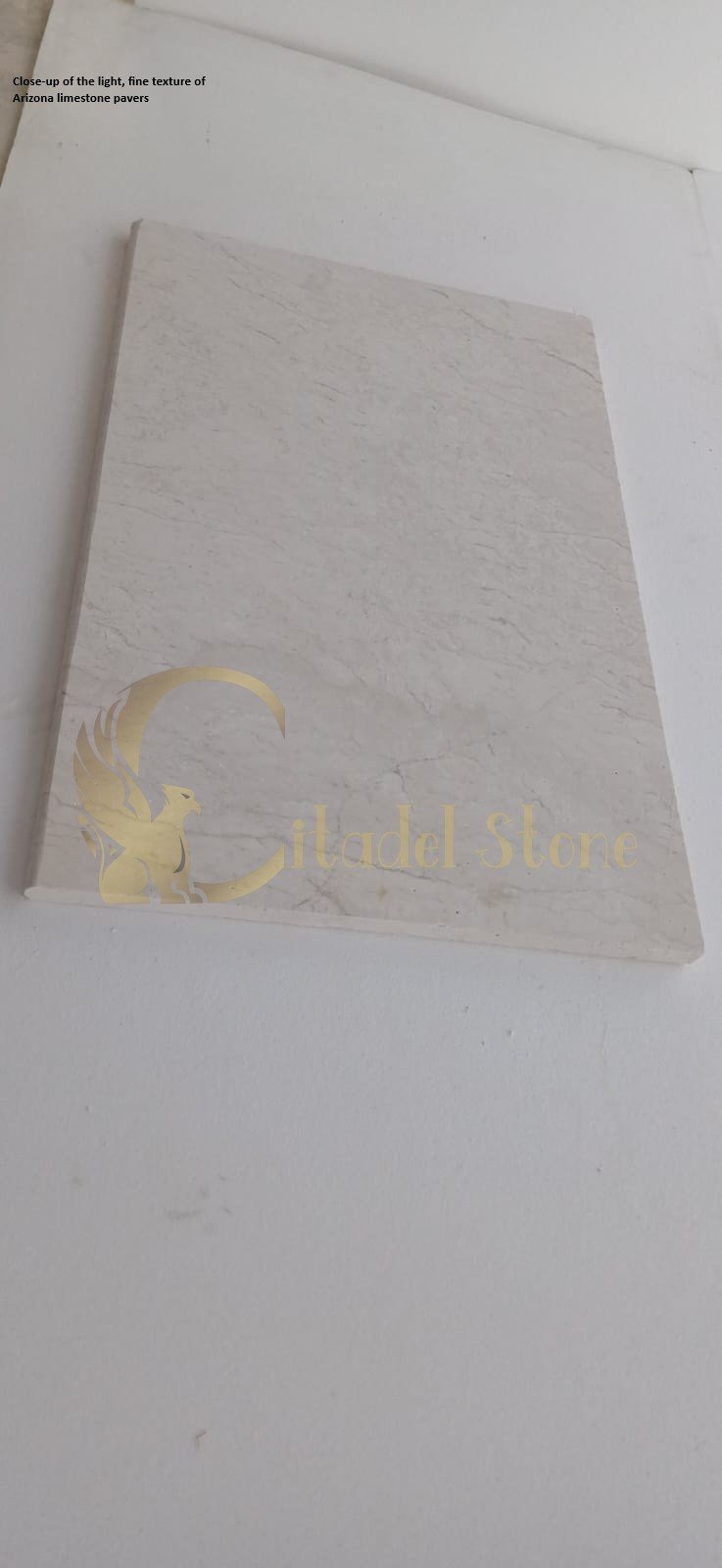

Available finishes: Honed (smooth matte, various grit levels), brushed (wire-brushed texture), sawn (as-cut from quarry saw), tumbled (mechanically aged edges), flamed/thermal (heat-textured, less common for limestone). Each finish affects slip resistance, thermal performance, and aesthetic—specify finish in purchase orders and verify on sample boards.
Thickness tolerance: Calibrated pavers typically ±2mm (±0.08″) from nominal thickness; non-calibrated ±5mm (±0.20″) typical. Tight tolerances essential for uniform bedding depth and flatness. Specify maximum acceptable variation—tighter tolerances cost more but reduce installation labor and improve finished appearance.
Edge straightness tolerance: Quality limestone pavers: ±1mm (±0.04″) over 24″ length; standard production: ±2mm (±0.08″). Critical for achieving tight joints (1/8″–3/16″) in contemporary designs. Request edge tolerance data and verify on sample units.
Flatness/warping tolerance: Maximum 2mm deviation across diagonal for pavers ≤24″×24″; 3mm for larger formats (typical guidance). Excessive warping creates lippage (height differential between adjacent units) and rocking pavers—reject units exceeding tolerance.
Citadel Stone Technical Specs — What We Publish & Why
Citadel Stone provides the following datasheet fields for every production lot:
✓ Lot identification number — Unique identifier linking delivered materials to test reports and sample boards, essential for traceability and warranty claims
✓ Quarry origin & geological formation — Source location and stone type (e.g., “European limestone, Jurassic formation”) affects performance characteristics and aesthetic
✓ Water absorption percentage (ASTM C97) — Primary predictor of freeze-thaw resistance, staining susceptibility, and maintenance requirements
✓ Apparent porosity — Void space measurement correlating with absorption and durability
✓ Compressive strength (ASTM C170) — Load-bearing capacity for structural specification
✓ Flexural strength (ASTM C99, when available) — Bending resistance for large-format or unsupported span applications
✓ Bulk density — Mass per volume, indicator of material density and durability
✓ Freeze-thaw cycle results (ASTM C666, when tested) — Required for Flagstaff/Prescott projects, provided when available from quarry testing programs
✓ Recommended finish options — Available surface treatments (honed, brushed, sawn) with slip and thermal performance notes
✓ Typical color range with photographs — Representative images showing expected variation within lot—critical for lot-match acceptance
✓ Recommended applications — Suitable uses based on material properties (pedestrian patio, pool deck, driveway, wall cladding)
✓ Installation guidance — Bedding recommendations, jointing specifications, sealer compatibility
✓ Lead time & availability — Current stock status and typical delivery windows for Arizona
Why each field matters: Lot identification enables warranty claims and future matching for additions/repairs. Absorption and freeze-thaw data predict durability in your specific climate. Strength values guide structural design. Color photographs establish acceptance standards preventing post-delivery disputes. Installation guidance prevents specification errors that void warranties or cause premature failure.
Buyer’s Checklist for Natural Stone — Pre-Purchase Actions
Follow this buyer’s checklist for natural stone to protect your investment before committing to purchases:
Step 1: Request comprehensive documentation (allow 3–7 business days)
- Mill test reports for specific lot number showing all physical properties
- Quarry identification and geological formation data
- Freeze-thaw cycle test results (mandatory for Flagstaff/Prescott projects)
- Representative color photographs showing expected variation
- Available finish samples or finish specification sheets
- Current lead times and delivery logistics for Arizona
Step 2: Stage sample boards (30–90 days before installation)
- Obtain minimum 2’×2′ sample board using actual production lot materials
- Photograph lot tags showing quarry identification, lot number, and production date
- Position sample board at installation site in representative sun/shade exposure
- Photograph weekly (consistent time of day) documenting color evolution and weathering
- Conduct water-drop test at 30 days—time how long water beads vs. absorbs
- Measure surface temperature with IR thermometer during peak sun (compare to ambient and dark reference)
- Accept or reject lot based on sample performance—written acceptance required

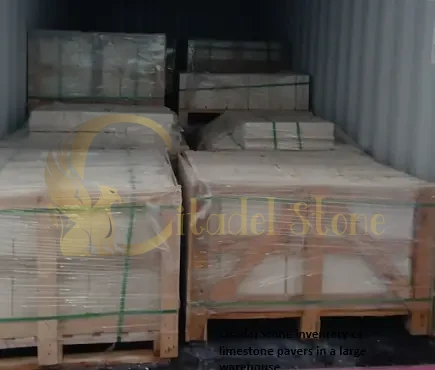

Step 3: Verify shipping, handling & storage plan
- Request protected packaging specifications (cardboard edge guards, shrink-wrap, palletization)
- Confirm delivery timing coordinated with installation schedule (avoid extended on-site storage)
- Verify on-site storage requirements (level surface, weather protection, access for forklifts)
- Establish protocol for inspecting deliveries before truck departure (count, visible damage check)
Step 4: Establish acceptance window and rejection protocol
- Negotiate 7–14 day acceptance window after delivery for lot-match verification
- Define “material deviation” threshold (e.g., color variation exceeding sample board range = grounds for rejection)
- Document rejection procedure—written notice timeline, return logistics, replacement delivery schedule
- Clarify remedy (full replacement vs. pro-rated credit vs. price adjustment)
Step 5: Confirm warranty terms and transferability
- Request written warranty document before purchase (not just verbal assurances)
- Verify coverage (material defects, structural failure) and exclusions (weathering, installation, maintenance)
- Confirm duration (1–5 years typical) and start date (delivery vs. installation)
- Determine transferability to future property owners (adds resale value)
- Require lot-match protection within acceptance window
Step 6: Review lead times and stage materials for project schedule
- Confirm production and shipping timelines allow contractor scheduling
- Order materials minimum 4–6 weeks before planned installation (longer for custom sizes or finishes)
- Coordinate delivery with site access and storage availability
- Plan for weather delays (monsoon season, Flagstaff winter) affecting delivery or installation
Download the High-Altitude Guide to Winterizing Your Limestone Pavers!
Datasheet: Minimum Test Requirements to Request
Water absorption & porosity test requirements
Test specification language for procurement documents:
“Supplier shall provide certified laboratory test results per ASTM C97 (Standard Test Methods for Absorption and Bulk Specific Gravity of Dimension Stone) for production lot [LOT NUMBER]. Test report shall include: water absorption expressed as percentage by weight, bulk specific gravity, apparent specific gravity, apparent porosity percentage, sample identification matching delivered lot, laboratory name and accreditation, test date within 12 months of delivery, and signed/stamped certification. Target acceptance: water absorption ≤3.0% for general Arizona exterior use; ≤2.0% for pool surrounds and Flagstaff freeze-thaw zones.”
Compressive & flexural testing to request (lab language)
Test specification language:
“Supplier shall provide certified compressive strength test results per ASTM C170 (Standard Test Method for Compressive Strength of Dimension Stone) for production lot [LOT NUMBER]. Minimum five specimens tested, results reported as average compressive strength in psi with standard deviation. Acceptance threshold: ≥6,000 psi for pedestrian applications; ≥8,000 psi for high-traffic or vehicular applications. Where available, request flexural strength (modulus of rupture) per ASTM C99 showing bending resistance for large-format panels (≥24″×48″).”
Weathering, salt scaling & freeze-thaw cycles — acceptable thresholds
Test specification language for high-altitude Arizona projects:
“For installations in Flagstaff, Prescott, or elevations >5,000 feet, supplier shall provide freeze-thaw cycle test results per ASTM C666 (Standard Test Method for Resistance of Concrete to Rapid Freezing and Thawing) or equivalent. Test shall demonstrate <5% weight loss and minimal surface degradation after minimum 50 freeze-thaw cycles. Where deicing will occur, request salt scaling resistance per ASTM C672 showing rating ≤2 (slight to moderate scaling acceptable; severe scaling unacceptable). For lower-elevation Arizona, freeze-thaw testing recommended but not mandatory—prioritize water absorption ≤3% as proxy indicator.”
Installation & Performance Specs — What Contractors Must Follow
Recommended sub-base, bedding & compaction targets
Standard pedestrian patio specification (typical guidance—verify with structural engineer):
- Subgrade: Proof-roll to identify soft spots; over-excavate and replace with engineered fill where bearing capacity <1,500 psf
- Geotextile: Non-woven separation fabric where native soil contains fines (silts, clays) or organic content
- Sub-base: 6″–8″ compacted angular crushed rock (¾” minus ABC) for stable Arizona desert soils; 8″–12″ for expansive soils, fill, or Flagstaff frost-depth requirements
- Compaction: 95% Standard Proctor minimum, verified by nuclear density gauge or plate-bearing test at 50′ intervals
- Bedding: 1.5″–2″ coarse concrete sand (ASTM C33), screeded to uniform depth—avoid fine sand that migrates or retains excessive moisture
Vehicular/driveway specification (typical guidance):
- Sub-base depth 10″–12″ minimum, compacted in 4″ lifts maximum
- Consider geogrid reinforcement at mid-depth for load distribution over marginal soils
- Increase paver thickness to 2″–2.5″ or use structurally rated units
- Bonded installation (mortar bed or thin-set over concrete slab) recommended for heavy or frequent vehicular traffic
Jointing, edge restraint & wet-edge details
Jointing specifications:
- Field joints (patio interior): 3/16″–3/8″ width filled with polymeric sand, properly compacted and activated per manufacturer protocol
- Wet edges (pool surrounds, fountain perimeters): Repoint with polymer-modified mortar recessed 1/8″–1/4″ below paver surface, creating drainage path while preventing washout
- Movement joints: 1/2″–3/4″ width at 10’–12′ intervals and at structure junctions, filled with closed-cell backer rod and elastomeric sealant color-matched to stone
Edge restraint specifications:
- Install continuous perimeter restraint—concrete curb/haunch (minimum 6″×8″ cross-section) or commercial steel/aluminum edge system
- Anchor restraint with spikes/stakes driven 8″–10″ depth into stable base, spaced 12″–18″ on-center
- In Flagstaff/Prescott, embed restraint below frost line (24″–36″ typical—verify local code)
- Backfill and compact behind restraint before paver placement
Tolerances, flatness & acceptance criteria on delivery
Acceptance inspection protocol (conduct before delivery truck departs site):
✓ Verify pallet count matches delivery ticket and purchase order ✓ Photograph lot tags from all pallets—confirm lot numbers match approved sample board ✓ Inspect minimum 10% of units for visible damage (cracks, chips, staining) ✓ Measure thickness on 5 random units—verify within ±2mm tolerance (calibrated) or ±5mm (standard) ✓ Check flatness by placing straightedge across diagonal—maximum 2mm deviation for units ≤24″×24″ ✓ Assess color consistency visually—extreme outliers ground for rejection if exceeding sample board range ✓ Document any deficiencies with photographs before truck leaves—late claims difficult to enforce
Installed flatness tolerance:
- Maximum 1/8″ (3mm) lippage (height differential) between adjacent paver edges under 10′ straightedge
- No rocking pavers—all corners must contact bedding layer solidly
- Surface drainage slope 1.5–2% minimum away from structures (verify with laser level or transit)
Acceptance Testing & QA — Field Tests & Documentation
Post-installation acceptance testing checklist:
Visual inspection (24 hours after installation):
- No visible cracks, chips, or surface damage (pre-existing damage should have been rejected at delivery)
- Joint widths consistent (±1/8″ variation acceptable)
- Color consistency within sample board range
- No mortar haze or polymeric sand residue on paver surfaces
Flatness verification (use 10′ straightedge):
- Maximum 1/8″ lippage between adjacent units
- No high spots or depressions creating trip hazards
- Smooth transitions at grade changes or material boundaries
Drainage testing (garden hose simulation):
- Water flows toward designed drainage points without ponding
- No standing water puddles remaining >15 minutes after water application ceases
- Drains, scuppers, or outlets functioning and clear of debris
Water absorption spot test (optional, for sealed installations):
- Water drops bead on sealed surfaces for 10+ minutes (indicates sealer functioning)
- Unsealed surfaces absorb within 2–5 minutes (verify consistent with datasheet values)
30-day post-installation inspection:
- Joint material intact (no erosion, cracking, or loss >10% of joints)
- No settling, heaving, or displacement of individual units
- No efflorescence (white powdery deposits) exceeding light surface dusting
- Photograph inspection results documenting performance—submit to owner and contractor
Arizona Paver Selection Guide — City Notes (Phoenix, Tucson, Flagstaff, Mesa)
This arizona paver selection guide provides city-specific material selection and specification priorities:
Phoenix (elevation 1,100′, hot desert climate):
- Priority: Thermal comfort, pool-edge performance, UV stability
- Material specs: Water absorption <2.5% for pool surrounds (chlorine splash resistance), light colors (cream, beige, light gray) reduce heat absorption by 15–25°F vs. dark tones
- Finish: Honed or brushed for slip safety around pools—avoid polished finishes
- Jointing: Mortar joints mandatory within 3′ of pool edge; polymeric sand acceptable for main patio field
- Sealing: Breathable penetrating sealer recommended for pool surrounds and outdoor kitchens; reseal every 2–3 years in intense Phoenix sun
- Special note: Verify installer experience with Phoenix pool-edge waterproofing tie-ins—critical detail preventing water infiltration behind coping
Tucson (elevation 2,600′, high desert with wind):
- Priority: Dust tolerance, wind-resistant jointing, hard-water staining management
- Material specs: Mid-tone colors (beige, tan) camouflage dust better than pure white; water absorption <3% adequate for most applications
- Finish: Brushed finish handles windblown grit without showing excessive wear
- Jointing: Enhanced polymeric sand with UV stabilizers (Tucson sun intense); consider mortar at exposed edges subject to wind scour
- Irrigation: Tucson often uses well water (high mineral content)—rinse pavers after irrigation overspray to prevent mineral staining
- Special note: Plan for gravel or decomposed granite borders reducing dust blown onto paver surfaces from adjacent desert landscaping
Flagstaff (elevation 6,910′, cold winters with freeze-thaw):
- Priority: Freeze-thaw resistance, snow removal safety, deicing compatibility
- Material specs: MANDATORY freeze-thaw testing <5% weight loss after 50 cycles; water absorption <2.5% strongly recommended, <3% absolute maximum
- Finish: Brushed or honed (coarse grit) for slip safety on ice/snow
- Base depth: Design for 30″–36″ frost depth—verify current building code requirements
- Jointing: Mortar joints at all exposed edges; polymeric sand in field acceptable if properly installed and cured
- Sealing: Breathable sealer only—never use film-forming topical sealers (trap moisture causing freeze damage)
- Special note: Request salt-scaling resistance test (ASTM C672) for pavers subject to winter deicing—avoid sodium chloride deicers
Mesa (elevation 1,200′, similar to Phoenix with caliche soils):
- Priority: Subgrade preparation (caliche layer common), dust management
- Material specs: Similar to Phoenix—water absorption <3%, light to mid-tones for heat management
- Installation: Probe subgrade during design phase—caliche layer (hardpan calcium carbonate) often 12″–24″ below surface requires breaking through or over-excavation
- Jointing: Standard polymeric sand adequate for most applications
- Special note: Budget for caliche removal/remediation ($3–$8 per sq ft additional—estimated) if probing reveals thick caliche interfering with required base depth
Copy-Paste Specification Language — Text You Can Use in Contracts
Material submittal clause: “Contractor shall submit product datasheets including lot identification, water absorption percentage per ASTM C97, compressive strength per ASTM C170, and quarry origin for approval minimum 14 days before material order. Datasheets shall include representative color photographs showing expected variation. No materials shall be ordered or delivered without written approval of submittals.”
Lot-match protection clause: “All delivered limestone pavers shall originate from single production lot or compatible consecutive lots as approved on sample board. Owner reserves right to reject materials showing color or texture variation materially exceeding approved sample board range. Rejection must occur within [7–14 days] of delivery. Supplier shall replace rejected materials at no cost to owner (material cost only; labor not included unless negotiated).”
Sample board requirement clause: “Supplier shall provide minimum 2’×2′ sample board using materials from designated production lot, including lot tags and finish specification. Sample board shall be staged outdoors at project site minimum [30–90 days] before installation. Owner acceptance of sample board locks in lot number for project. After written acceptance, supplier liability for minor color variation within natural stone tolerances is waived.”
Testing and certification clause: “Supplier shall provide certified laboratory test reports dated within 12 months of delivery showing: water absorption ≤ [3%], compressive strength ≥ [6,000 psi], and freeze-thaw resistance <5% weight loss after 50 cycles (for Flagstaff/Prescott projects). Test reports shall reference lot number and include laboratory accreditation information. Failure to provide required testing is grounds for material rejection.”
Acceptance window and remedy clause: “Owner shall have [7–14 calendar days] from delivery to inspect materials for lot match, damage, and specification compliance. Written acceptance or rejection required within window. Accepted materials become owner’s responsibility; rejected materials shall be removed by supplier within [5 business days] and replaced with conforming materials at no additional cost. Remedy limited to material replacement or credit at supplier’s option—no consequential damages.”
Handling and storage clause: “Contractor shall handle limestone pavers using appropriate equipment (suction lifters for large formats, protective pallets). Store materials on level surfaces under weather protection until installation. Damaged materials resulting from improper handling or storage are contractor’s responsibility. Lot tags shall remain attached to pallets until installation complete and acceptance granted.”
Installation warranty clause: “Contractor warrants installation workmanship free from defects for [1–2 years] from substantial completion. Workmanship warranty covers base compaction, proper bedding, joint installation, edge restraint, and drainage grading per approved plans. Warranty does not cover material defects (covered by separate supplier warranty), owner modifications, or damage from improper maintenance.”
Final acceptance and close-out clause: “Final acceptance occurs upon: completion of installation per approved plans, passing of field acceptance tests (flatness, drainage, visual inspection), delivery of as-built documentation including lot tags and test reports, completion of 30-day observation period without defects, and owner sign-off on acceptance form. Final payment contingent on satisfactory completion of all acceptance criteria.”
Sample Board & Lot Verification Process — Datasheet vs Reality
The limestone datasheet phoenix provides theoretical material properties; sample board staging reveals real-world performance at your specific site. Follow this protocol:
Week 1—Sample board creation:
- Request supplier provide 2’×2′ minimum sample board (larger better) using actual production lot
- Photograph lot tags showing quarry ID, lot number, production date
- Apply finish treatment matching project specification (honed, brushed, sealed/unsealed)
- Label sample board with waterproof tag: “Lot #[NUMBER], [FINISH], Staged [DATE], Project [NAME]”
Weeks 1–4—Intensive observation:
- Position sample board at installation site in representative sun/shade exposure
- Photograph at consistent time (midday recommended) weekly for first month
- Document color evolution—many limestones darken slightly or develop patina in first 30 days
- Record surface temperature with IR thermometer during peak sun (compare to ambient air temp)
- Conduct water-drop test at day 30—time how long drops bead vs. absorb
Weeks 5–12—Extended staging (optional but recommended):
- Continue monthly photographs through 90 days
- Observe performance through full seasonal cycle if possible (monsoon moisture, winter cold in high-altitude)
- Note any staining from environmental exposure (dust, organic matter, mineral deposits)
- Document any surface degradation (shouldn’t occur in quality limestone but reveals problems early)
Acceptance decision:
- Compare sample board to original datasheet photographs—verify color within expected range
- Review water absorption field test vs. datasheet values—significant deviation indicates testing discrepancy
- Assess thermal performance—surface temps should align with expectations for color/finish
- Make accept/reject decision within agreed timeframe
- Document acceptance in writing with photographs: “Sample board lot #[NUMBER] accepted [DATE] with following observations: [NOTES]. Proceed with order for [QUANTITY] sq ft.”
Post-delivery verification:
- Compare delivered pallet lot tags to accepted sample board lot number—must match
- Lay out representative samples from delivery alongside sample board in natural light
- Verify color consistency—minor variation acceptable, material deviation grounds for rejection
- Photograph comparison and document any concerns immediately (before delivery truck departs)
Warranty, Traceability & Lot Tagging — What to Demand from Supplier
Lot traceability requirements:
Every pallet must include weatherproof lot tag displaying: quarry name/location, geological formation (if available), production lot number, finish specification, nominal dimensions, quantity per pallet, and production date. Photograph all lot tags before tags are removed or damaged—these photos are your proof of material source for warranty claims and future matching.
Delivery ticket requirements:
Delivery ticket (shipping manifest) must reference: project name/address, purchase order number, lot numbers included in shipment, total square footage delivered, pallet count, and carrier information. Owner and contractor should both sign delivery ticket after acceptance inspection—unsigned tickets complicate dispute resolution.
Warranty document requirements:
Request written warranty before purchase including: coverage duration and start date (delivery vs. installation), specific coverages (material defects, structural failure), explicit exclusions (weathering, installation issues, maintenance failures), remedy (replacement material vs. credit vs. refund), claim procedure (notification timeline, inspection process, documentation requirements), and transferability terms if property sells.
Sample warranty language to request:
“Supplier warrants limestone pavers lot #[NUMBER] free from manufacturing defects affecting structural integrity or usability for [2–5 years] from delivery date. Warranty covers cracking, warping, delamination, or material failure under normal exterior use. Warranty excludes natural weathering, color mellowing, staining from external sources, damage from improper installation or maintenance, and failures due to freeze-thaw exposure where material not sold as frost-rated. Remedy limited to replacement materials (material cost only) or pro-rated credit at supplier option. Warranty transferable to subsequent property owner with written notification within 30 days of ownership transfer.”
Claim documentation requirements:
To file warranty claim, maintain: original delivery tickets with lot numbers, photographs of lot tags, installation photographs (base, bedding, pavers, joints), dated photographs showing problem development, maintenance records (sealing, cleaning, repairs), and written timeline of issue discovery and supplier notification. Claims without adequate documentation typically denied.
Our limestone paver collection in Arizona
Citadel Stone – top limestone pavers are described below as a purely hypothetical specification resource for a selection of Arizona cities. This short introduction provides conditional guidance only — it does not describe real jobs or named clients — and highlights material choices, finishes and practical support options you might consider when specifying for local conditions.
Glendale
Glendale’s long sunny seasons, low humidity and frequent evening irrigation cycles make surface temperature and stain resistance key concerns; coastal salt spray and hurricane exposure are not relevant, and freezes are rare. For Glendale we would often suggest low-porosity limestone in a lighter tone with a honed or lightly textured finish to reduce glare and improve grip after irrigation events; polished faces would normally be limited to covered areas. As general guidance consider 20–30 mm for patios; 30–40 mm for light vehicle areas. For specification in Glendale our pavers could be reviewed via sample boards, technical datasheets, specification advice and palletised delivery options.
Tempe
Tempe’s urban warming, extended UV exposure and seasonal monsoon bursts create a need for fade-resistant stone and reliable runoff performance; salt spray/coastal effects and hurricane risk do not apply locally, and freezes are infrequent. In Tempe it would be sensible to specify a compact limestone with a medium texture or honed finish to balance visual finesse with anti-slip properties when surfaces are wet. Use the general thickness guidance of 20–30 mm for patios; 30–40 mm for light vehicle areas. For designers in Tempe we could provide samples, porosity data, detailed installation notes and palletised delivery coordination for staged mock-ups.
Peoria
Peoria’s climate mixes intense sun with occasional heavy thunder-storms during the monsoon season; coastal and hurricane threats are irrelevant and freezes occur only rarely. Popular local materials often include fossiliferous limestones for visual depth; travertine may be chosen for intimate seating or pool perimeters where a naturally patterned surface is preferred. For Peoria we would typically recommend low-absorption limestone or selected travertine with a textured or honed face to help shed water and retain grip. General thickness guidance: 20–30 mm for patios; 30–40 mm for light vehicle areas. Specification packages could include sample tiles, technical datasheets, specification support and palletised delivery advice.
Surprise
Surprise endures prolonged summer heat and episodic intense monsoon showers; humidity is low overall, coastal influences are absent and freezes are uncommon. In Surprise a low-porosity limestone with a pronounced texture or a fine-honed finish would often be recommended to reduce surface heat and improve traction during wet spells; polished finishes tend to be reserved for covered applications. As a rule of thumb use 20–30 mm for patios; 30–40 mm for light vehicle areas. For specification in Surprise our pavers could be supplied for mock-ups, supported by slip-rating datasheets, recommended jointing details and palletised delivery planning.
San Tan Valley
San Tan Valley’s long dry spells, frequent dust events and high solar load make dust control and thermal comfort central concerns; coastal spray and hurricane exposure are not applicable, and freezes are rare. Popular local selections include warm buff limestones; travertine is sometimes used selectively for pool borders where a cooler surface is desirable. For San Tan Valley we would suggest low-porosity limestone with a textured or lightly honed surface to limit dust entrapment and moderate surface temperature. Typical thickness guidance: 20–30 mm for patios; 30–40 mm for light vehicle areas. For specification we could provide sample boards, porosity/abrasion datasheets, installation notes for dusty sites and palletised delivery options.
Yuma
Yuma’s extreme solar irradiance and very low annual rainfall make thermal performance and light-tone selection particularly important; coastal salt spray and hurricanes are not relevant and freezes are exceptionally rare. In Yuma a light-coloured, low-porosity limestone in a honed or subtle textured finish would commonly be suggested to lower surface temperatures and improve barefoot comfort; textured options also help with traction. As a general guideline select 20–30 mm for patios and 30–40 mm for light vehicle areas. For Yuma our pavers could be sampled on site, supported by thermal and moisture technical datasheets, specification advice for expansion joints and palletised delivery scheduling.
Practical selection notes for Arizona
Across these six cities recurring specification themes would usually shape how Citadel Stone – top limestone pavers might be recommended. Prioritise low-porosity material where irrigation, dust or occasional chemical exposure are likely, and select finishes that balance aesthetics with safety — honed for refined courtyards, textured for exposed walkways and wet areas; polished faces are mostly for sheltered applications. The 20–30 mm (patios) and 30–40 mm (light vehicle areas) ranges are offered as general guidance and should be adjusted by structural engineers based on subbase design, anticipated loads and any local frost considerations (generally limited in these locations). When travertine is under consideration (often for pool edges or small terraces) assess porosity and sealing regimes against long-term maintenance expectations. For monsoon-prone towns, detail surface falls, channel drains or permeable joints to avoid ponding; for dusty locations, stabilised subgrades and mock-ups help confirm the aesthetic and cleaning burden.
Where helpful, Citadel Stone – top limestone pavers could be paired with specification support documents: sample kits for tonal and tactile review, comprehensive technical datasheets (porosity, abrasion, slip ratings), suggested laying patterns, jointing recommendations and palletised delivery options to suit site logistics. For procurement and detailing our pavers could be specified alongside accessory recommendations (edge restraint, polymeric jointing, sealers) and maintenance notes to align expected longevity with the local climate.
Frequently Asked Questions
Q: What tests should I absolutely insist on before purchasing limestone pavers?
At minimum, request water absorption (ASTM C97) and compressive strength (ASTM C170) test reports for your specific lot number. For Flagstaff/Prescott projects, freeze-thaw resistance testing (ASTM C666) is mandatory. Stage a sample board outdoors 30–90 days observing color stability and thermal performance. Never rely on verbal assurances—documented test results only. Request Citadel Stone Datasheet & Staged Sample Board before committing to purchase.
Q: How long should a sample board be staged before accepting the lot?
Industry best practice: minimum 30 days, preferably 60–90 days for complete evaluation. Thirty days reveals initial color evolution and water absorption performance; 90 days captures seasonal exposure (monsoon moisture, temperature extremes) and long-term stability. Showroom viewing provides insufficient assessment—natural sunlight, thermal cycling, and weather exposure reveal true performance only through extended staging.
Q: What happens if the delivered lot doesn’t match my approved sample board?
Use your lot-match protection clause requiring replacement of materially mismatched materials within the acceptance window (typically 7–14 days). Document deviation with side-by-side photographs in natural light. Notify supplier in writing immediately. Retain delivery tickets and lot tag photos. Reputable suppliers replace non-conforming materials promptly; disputes escalate through warranty claim process. Prevention: photograph lot tags at delivery before accepting shipment.
Q: Does Citadel Stone provide datasheets for every production lot?
Yes—Citadel Stone provides comprehensive datasheets for each production lot including test reports, quarry origin, representative photographs, and installation guidance. Request datasheets by lot number when obtaining quotes or sample boards. Datasheets delivered with material shipments and available digitally for future reference. Request datasheet for current inventory or upcoming production lots.
Q: What specifications matter most for pool edges in Phoenix?
Water absorption <2.5% reduces chlorine staining and chemical damage, honed or brushed finish (never polished) provides wet slip safety, mortar joints within 3′ of pool edge prevent washout from splash, proper coping anchoring to pool bond beam with waterproof flashing, and breathable sealer reducing surface absorption. Request pool-edge specification addendum addressing these critical details. Download the buyer’s checklist including pool-specific requirements.
Q: How do I request an on-site acceptance audit from Citadel Stone?
Use our CTA to schedule acceptance audit—provide project address, lot number(s), preferred inspection date, and specific concerns if any. Citadel Stone representative will visit site, inspect delivered materials against datasheet specifications, verify lot tags, conduct field tests (flatness, water absorption, joint integrity), and provide written acceptance report. Service available throughout Arizona. Order an On-Site Acceptance Audit — Phoenix | Tucson | Flagstaff | Mesa to verify material compliance.
Conclusion — Downloadable Buyer’s Checklist & How to Request Datasheets or Sample Boards
Successful limestone paver procurement in Arizona requires systematic attention to material testing, sample board staging, installation specifications, and acceptance protocols. This specification sheet provides the technical foundation and copy-ready contract language to
protect your investment and ensure long-term performance across Arizona’s diverse climates—from Phoenix’s intense heat and pool chemistry challenges to Flagstaff’s demanding freeze-thaw cycles.
Your essential action checklist:
Before purchase:
Request lot-specific datasheets with test reports (water absorption, compressive strength, freeze-thaw if applicable)
Stage sample boards outdoors 30–90 days at actual site location
Photograph lot tags and document color evolution weekly
Establish written acceptance window (7–14 days) and lot-match protection in contract
Verify warranty coverage, exclusions, and remedy terms in writing
At delivery:
- Inspect materials before delivery truck departs—photograph lot tags from all pallets
- Verify lot numbers match approved sample board
- Check for visible damage, count accuracy, and dimensional compliance
- Document any deficiencies immediately with photographs and written notice
Post-installation:
- Conduct flatness and drainage field tests within 24 hours
- Photograph installation documenting joint quality, surface condition, and overall appearance
- Schedule 30-day post-installation inspection documenting performance
- Maintain maintenance records (cleaning, sealing, repairs) for warranty protection
For future reference:
- Retain all delivery tickets, lot tags, test reports, and sample board photographs
- Store warranty documents and acceptance forms in project file
- Keep contractor contact information for warranty service
- Document any issues promptly with dated photographs and written timeline
Ready to specify limestone pavers with confidence for your Arizona project? Download the Buyer’s Checklist PDF — Arizona featuring printable forms, inspection protocols, and copy-paste specification language. Need datasheets and test reports for specific production lots? Request Citadel Stone Datasheet & Staged Sample Board with comprehensive technical documentation and representative samples for outdoor staging. Want professional verification of delivered materials? Order an On-Site Acceptance Audit — Phoenix | Tucson | Flagstaff | Mesa including field testing, documentation review, and written acceptance report.
Citadel Stone — Serving Phoenix, Tucson, Flagstaff & Mesa, Arizona
