How to Install Cobble Setts on a Slope for Proper Drainage and Stability

Quick Answer — Can Setts Work on a Slope?

Yes—cobble setts perform excellently on slopes when installations incorporate proper grade limits, engineered base construction with adequate compaction, integrated drainage interception systems, and robust edge restraints. The three highest-impact actions for slope success are: correct base depth and compaction (95% Standard Proctor minimum, increased depth for vehicular loads), strategic drainage interceptors (linear drains, French drains, or swales positioned to collect and redirect runoff before it undermines the pavement), and appropriate jointing materials (mortar or bonded polymeric products resist washout better than loose sand on slopes). Address these fundamentals early in design and installation to avoid costly failures.

Planning & Permits — Site Assessment, Slope Limits & Safety

Successful slope installations begin with thorough site assessment and understanding regulatory requirements before any excavation occurs.

Site survey essentials:

• Measure existing slope using builder’s level, transit, or laser level; document longitudinal fall (direction of primary grade) and cross-fall (perpendicular drainage slope)
• Map overland flow paths during rain events; identify concentration zones where runoff accumulates
• Locate utilities (water, sewer, electric, gas, communications) using 811 call-before-you-dig service; verify clearances
• Test subgrade soils: conduct hand auger borings or engage geotechnical engineer for formal testing if site has fill, organic soils, or prior failures
• Identify cut-and-fill requirements; calculate volumes for base material ordering

Maximum Practical Slope Ranges and Sight-Lines (Where to Avoid Setts)

Slope limits by use case (typical guidance — US example):

• Pedestrian pathways: Up to 15–18% slope is practical with textured sett surfaces; beyond 18% consider steps, ramps with landings, or alternative materials
• Residential driveways: 8–12% maximum for comfortable daily use; 12–15% acceptable for short runs with good drainage; above 15% requires stepped terraces or hybrid concrete turnout pads
• Commercial vehicular areas: 5–8% preferred; 10% maximum for parking and delivery access
• ADA-compliant accessible routes: Maximum 8.33% (1:12) slope; setts alone rarely meet ADA surface requirements unless combined with smooth center strip

When to avoid setts on slopes:

• Slopes exceeding practical limits for intended use
• Sites with unstable soils (expansive clays, high water table, active landslide zones) without engineered stabilization
• Steep grades requiring frequent tight-radius turns (traction and steering challenges)
• Areas where ice formation is common and de-icing access is limited

Permits, Stormwater Rules and ADA Considerations (USA Notes)

Regulatory checklist:

• Grading permits: Most jurisdictions require permits for grading changes exceeding 50–100 cubic yards or slope modifications affecting drainage patterns
• Stormwater management: Projects exceeding threshold areas (often 1 acre of disturbed soil) trigger NPDES permit requirements; erosion and sediment control plans mandatory during construction
• Building permits: Residential driveways and commercial paving often require building department review for setbacks, drainage, and fire access
• ADA compliance: Public and commercial projects must meet accessibility standards; cobble setts with irregular surfaces typically require smooth alternative routes or center strips

Consult your local building department, public works agency, and stormwater utility early in planning. Many jurisdictions offer pre-application meetings to identify permit requirements and design standards.

Grading & Drainage Principles for Cobblestone Pavements

Proper grading for cobblestone pavement on slopes requires coordinating surface drainage, subsurface collection, and discharge pathways to prevent erosion and undermining.

Grading for Cobblestone Pavement — Design Slopes, Fall, and Spreaders

Surface grading standards (typical guidance):

• Cross-slope (perpendicular to traffic flow): Minimum 1–2% to move water laterally off pavement surface toward collection points; 2–3% preferred for moderate rainfall regions
• Longitudinal slope (direction of travel): Match existing terrain while staying within use-case limits; avoid flat spots (<0.5%) where water ponds
• Crowned sections: For wider driveways (12+ feet), crown centerline 1–2% higher than edges to shed water bilaterally

Grade transition design:

• Avoid abrupt slope changes; use vertical curves with minimum 20-foot radius (estimated) to prevent scraping and improve drainage flow
• At slope-to-flat transitions, install linear drains or depressed collection swales to intercept concentrated runoff
• Stepped terraces: For slopes exceeding safe continuous grades, design level landing zones every 30–50 feet with drainage interception at each terrace

Flow spreaders and energy dissipation:

• Use check dams, stone-lined spreaders, or banding ribs perpendicular to flow to slow velocity and distribute runoff across pavement width
• Space spreaders 15–30 feet apart (estimated) on steep sections (>10%) to prevent channelized erosion

Integrated Drainage Solutions: Interceptors, Linear Drains, Swales

Subsurface and edge drainage systems are non-negotiable for slope installations. Cobble sett drainage solutions typically include:

Underdrain systems:

• Perforated pipe (4-inch minimum diameter) in 8–12 inch clean crushed stone trench beneath or alongside sett base
• Pipe wrapping with geotextile sock prevents clogging with fines
• Discharge to daylight at toe of slope, into storm system, or to infiltration basin per local code

Linear trench drains:

• Install at low points, terrace edges, and slope-to-flat transitions
• Use slotted or grated channels (cast iron, polymer concrete) sized for expected flow rates
• Connect to piped discharge system; never allow concentrated flow to undercut pavement edges

French drains and bioswales:

• Position upslope of paved area to intercept sheet flow before it reaches sett pavement
• Stone-filled trenches (12–18 inches wide, 18–24 inches deep) with perforated collection pipe
• Plant bioswales with erosion-resistant native vegetation for sustainable stormwater management

Edge collection:

• Concrete or stone curbs with weep holes or scuppers to release subsurface water
• Avoid sealed edges that trap water beneath pavement—provide relief outlets every 20–40 feet

Coordinate all drainage with receiving systems (storm sewers, natural watercourses, retention ponds) and obtain necessary discharge permits.

Sett Base Preparation for Drainage — Step-by-Step

Proper sett base preparation for drainage on slopes follows a rigorous sequence to ensure long-term stability and water management. This contractor-ready protocol applies to most residential and light commercial installations.

Step 1: Excavation and subgrade preparation

• Excavate to design depth: base thickness + bedding layer + sett thickness + grade adjustments
• Remove organic material, soft spots, and unstable soils; replace with engineered fill if necessary
• Proof-roll subgrade with loaded dump truck or vibratory roller (10+ ton equivalent); identify and repair soft spots showing deflection
• Establish final subgrade at design slope using laser level or stringlines; verify drainage flow direction

Step 2: Geotextile installation (where required)

• On marginal soils (clays, silts, mixed fills), install non-woven geotextile separation fabric (minimum 4 oz/sq yd)
• Overlap seams 12–18 inches; secure with landscape staples or pins on slopes to prevent shifting during base placement
• Geotextile prevents base aggregate mixing with subgrade fines and provides modest tensile reinforcement

Step 3: Structural base installation

• Use angular crushed stone (3/4-inch minus or AASHTO #57 stone); avoid rounded gravel that lacks interlock
• Base depth by application (typical guidance — US example):

  • Pedestrian pathways: 4–6 inches compacted depth
  • Residential driveways (light vehicles): 6–8 inches compacted depth
  • Heavy vehicular (delivery trucks, RVs): 8–12 inches compacted depth
  • Slopes >10% or marginal soils: Add 2–4 inches to above depths
• Place base in 2–3 inch lifts; compact each lift to 95% Standard Proctor density using plate compactor or vibratory roller
• Maintain design slope and cross-fall during base construction; check frequently with level and straightedge

Step 4: Geogrid reinforcement (optional, high-stress zones)

• On steep slopes (>10%), poor soils, or heavy vehicle areas, install biaxial geogrid between base lifts for additional tensile strength
• Follow manufacturer’s installation specifications for overlap and anchoring
• Geogrid distributes loads and reduces lateral creep on slopes

Step 5: Capillary break and bedding layer

• Install 1–2 inch bedding layer of coarse sand, stone screenings, or fine crushed stone (1/4-inch minus)
• Screed bedding to consistent thickness using guides set at design slope
• For mortar-set installations on steep slopes: place 1–2 inch mortar bed over concrete base instead of aggregate bedding
• Bedding layer provides leveling cushion and capillary break preventing moisture wicking from base into setts

Step 6: Drainage integration during base construction

• Install underdrain pipes and French drain trenches during base placement, before bedding layer
• Connect lateral collectors to main drainage pipes with watertight fittings
• Test drainage flow with water before placing bedding and setts

Copy/paste specification lines for RFPs:

• “Proof-roll subgrade to identify soft spots; repair and re-compact to acceptance before base placement”
• “Install angular crushed stone base (AASHTO #57 or approved equal) to [specify depth] in maximum 3-inch lifts”
• “Compact each base lift to minimum 95% Standard Proctor density; submit compaction test reports”
• “Install 4 oz/sq yd non-woven geotextile separation fabric on clay or silt subgrades with 12-inch minimum overlaps”
• “Maintain design slope and cross-fall tolerances +/- 0.25% during base construction”
• “Install underdrain system per drainage plan; test flow before bedding placement”

Bedding, Jointing & Edge Restraint Details for Sloped Installations

Bedding methods, joint materials, and edge restraints must be specified specifically for slope conditions to prevent migration, washout, and failure.

Bedding options for slopes:

• Dry-laid aggregate bedding: 1–2 inch coarse sand or stone screenings; suitable for moderate slopes (<8%) with permeable design goals; requires robust drainage interception to prevent undermining
• Mortar bedding: 1–2 inch mortar bed (Type N or S) over 4-inch minimum concrete slab; recommended for slopes >8%, vehicular traffic, or wash-prone areas; provides rigid, erosion-resistant foundation
• Bitumen-stabilized bedding: Asphalt sand mix for extreme conditions; specialized application requiring heated material and experienced crews

Jointing materials and techniques:

• Mortar joints (best for slopes): Cement-sand mortar (matching bedding mix) applied by pointing bag or trowel; fill joints fully and tool smooth; excellent erosion resistance; requires 3–7 day cure before traffic
• Bonded polymeric mortar: Two-part epoxy or polymer-modified mortars; superior adhesion and flexibility; resists washout; higher cost; follow manufacturer’s curing protocols
• Standard polymeric sand: Stabilized sand product acceptable for slopes <6% with good drainage interception; prone to washout on steeper grades or unprotected concentrated flow zones
• Avoid loose sand: Conventional jointing sand washes out rapidly on slopes; use only in protected areas with comprehensive drainage controls

Joint width and filling:

• Target 6–10 mm joint width for mortar or polymeric products; wider joints (10–15 mm) for permeable aggregate joints
• Fill joints completely to within 1–3 mm of sett surface; avoid overfill that creates trip hazards
• Apply joint sealant or mortar strike flush; tool smooth to shed water

Edge restraint systems (critical on slopes):

• Concrete curbs with haunching: Poured concrete curb (minimum 6 inches wide x 8 inches deep) with 6–8 inch lean concrete haunch extending beneath sett field; anchors edges against downhill migration
• Soldier course with haunch: Setts set on-edge in concrete foundation; haunch extends under field pavers; matches aesthetic but requires careful alignment
• Steel or aluminum edging: Anchored L-profile edging with 10–12 inch spikes driven through base into subgrade at 24-inch spacing; suitable for gentle slopes (<6%) and pedestrian loads
• Reinforced edge keys: For steep slopes or heavy loads, install rebar-reinforced concrete key at uphill and downhill perimeter edges; keys act as retaining structures preventing lateral creep

Anchoring specifications:

• Edge restraints on slopes require embedment depth equal to or greater than sett thickness plus bedding depth
• Haunch concrete must extend minimum 6 inches under field pavers; 8–12 inches preferred for vehicular slopes
• Anchor spikes or rebar dowels connect edge restraints to base; prevents uplift or rotation

How to Lay Setts on an Incline — Laying Techniques & Chamfering

How to lay setts on an incline demands modified techniques compared to flat installations to maintain plane, prevent slip, and accommodate drainage features.

Laying direction and pattern:

• Perpendicular to slope (preferred for steep grades): Lay sett rows perpendicular to fall direction; this orientation presents minimal gap exposure to downslope runoff and provides lateral “speed bumps” that slow water velocity
• Parallel to slope: Acceptable for gentle grades (<6%); joints parallel to flow direction may channel water; requires tight jointing and good lateral drainage
• Herringbone pattern: Provides maximum interlock and load distribution; ideal for vehicular driveways on slopes; more labor-intensive

Stair-step and terraced laying:

• For slopes >12%, divide into level terraces separated by riser steps (4–8 inch risers typical)
• Lay sett field level on each terrace; install concrete, stone, or brick risers between terraces
• Position drainage interception at base of each riser to collect concentrated runoff

Banding and bulwarks:

• Install 6–12 inch wide bands of contrasting setts (or soldier courses set on-edge) perpendicular to slope at 10–20 foot intervals
• Bands act as mini-dams slowing runoff and distributing flow laterally
• Set bands slightly proud (5–10 mm higher than field) or flush with enhanced mortar joints

Wedge cutting and chamfering:

• On steep slopes, some setts may require bottom-edge chamfering (beveling) to sit flush on sloped bedding
• Use masonry saw or grinder with diamond blade; cut 5–15 degree chamfer on downslope edge
• Wedge-cut units fill gaps where standard rectangular setts create voids due to grade change

Crew workflow and staging:

• Work uphill from bottom edge; establishes reference line and prevents walking on freshly laid work
• Use laser level or taut stringlines set to design slope for alignment control
• Stage material upslope of work zone; gravity-assists moving setts into position
• Two-person lifting for units >40 lbs to prevent back injury on uneven terrain

Leveling techniques:

• Check plane frequently with 6–10 foot straightedge oriented both along and across slope
• Tap setts into bedding using rubber mallet; avoid striking faces directly (chip risk)
• For mortar-bed installations, butter each sett individually; set and tap; check for proper mortar squeeze-out at joints

Safety considerations:

• Establish secure footing; avoid overreaching on steep slopes
• Use fall protection (harnesses, anchor points) on slopes >4:1 (25%) per OSHA requirements
• Stage materials to prevent rolling; secure pallets and equipment.

See 15 Cobble Sett Driveway Ideas for Timeless Curb Appeal!

Erosion, Load & Freeze-Thaw Considerations

Slope installations face accelerated erosion forces, concentrated loading, and enhanced freeze-thaw vulnerability that demand material selection and design reinforcements.

Erosion control during construction:

• Install perimeter silt fencing or erosion control blankets during excavation and base work
• Maintain temporary drainage diversions to route runoff around active work zones
• Stabilize exposed slopes daily; cover stockpiles; use turbidity control measures per NPDES requirements
• Schedule work to avoid heavy rain periods when practical

Permanent erosion protection:

• Recessed concrete curbs or stone check dams at terrace edges absorb flow energy
• Planting terraces or vegetated swales upslope and downslope of pavement intercept and filter runoff
• Riprap or stone-lined channels at discharge points prevent scour
• Maintain established vegetation buffers around paved areas

Load concentration on sloped driveways:

• Vehicle braking and acceleration loads concentrate at slope transitions; these zones experience 1.5–2× typical stress (estimated)
• Reinforce transition zones with thicker base (add 2–4 inches), geogrid, or hybrid concrete turnout pads
• For steep residential driveways serving heavy vehicles (RVs, delivery trucks), consider poured concrete aprons at garage approaches with sett paving on lower-stress sections

Geogrid and reinforcement:

• Biaxial geogrid installed mid-depth in base layer distributes loads and resists lateral creep
• Geogrid benefits: reduces base thickness requirements by 15–30% (estimated); extends pavement life; critical for slopes >10% or weak subgrades
• Follow manufacturer’s installation specifications; proper overlap and tensioning required for effectiveness

Freeze-thaw durability:

• Slopes with inadequate drainage accelerate freeze-thaw damage; ice lenses form in saturated base layers and heave pavement
• Select frost-resistant setts: granite with <0.4% absorption, basalt, or freeze-rated concrete setts
• Ensure base drains freely; avoid impounding water in base layer
• In severe-cold climates (USDA Zones 3–5), increase base depth 2–4 inches and verify frost-protected footings for edge restraints extend below frost line

Testing, QA & Acceptance — Field Checks and Performance Criteria

Rigorous quality assurance during and after installation verifies that slope-specific performance criteria are met before final acceptance.

Proof-roll testing:

• Conduct proof-roll of subgrade before base placement: drive loaded truck (10+ ton gross) across site at walking speed; observe for pumping, rutting, or deflection
• Acceptance criteria: No visible deflection >0.5 inch; no pumping of fines; stable, unyielding surface
• Failure remediation: Excavate soft zones, stabilize with geotextile and additional compacted base, re-test

Compaction verification:

• Field density testing using nuclear gauge or sand cone method at representative locations (minimum 1 test per 500 sq ft or as specified)
• Acceptance criteria: Minimum 95% Standard Proctor density for base aggregate layers; 92–95% for bedding layer (typical guidance)
• Submit compaction reports with test locations, depths, moisture content, and density results

Plate bearing or California Bearing Ratio (CBR) testing:

• For critical projects (heavy vehicular, poor soils, steep slopes), conduct plate bearing tests to verify base capacity
• Typical acceptance: Minimum 80–100 CBR or bearing capacity supporting design wheel loads with <0.5 inch deflection

Joint adhesion and washout testing:

• For mortar or polymeric joints, inspect at 72 hours post-cure: lightly brush joints with stiff broom; loose material >5% by length indicates inadequate bonding
• Conduct water test: apply hose stream (moderate pressure) across joints for 2 minutes; observe for washout, erosion, or loss of joint material
• Acceptance: No visible washout; joint material remains intact and flush with sett surface

Surface plane verification:

• Check surface with 10-foot straightedge at multiple orientations; maximum deviation +/- 3/8 inch over 10 feet (typical tolerance for vehicular surfaces)
• Verify design slopes with level and measuring tape; confirm cross-fall and longitudinal fall match specifications +/- 0.5%

30-day observation period:

• Photograph pavement at 6 representative locations immediately post-install and at 30 days
• Monitor for joint washout, sett movement, edge migration, settlement, or drainage issues
• Document any deficiencies; contractor corrects before final acceptance and warranty activation

Copy/paste testing & acceptance template:

• Proof-roll result: PASS / FAIL — notes: ______
• Compaction report: ___% S.P. at depths ___— attach lab/field report
• Joint adhesion test (mortar/polymeric): PASS if less than 5% loose fines after cure
• 72-hr washout check: PASS / FAIL
• 30-day observation: date-stamped photos at 6 representative points — attach
• Final acceptance signature: ______ Date: ______

Typical Failure Modes on Slopes & Remediation Recipes

Understanding common failure mechanisms on sloped sett installations enables proactive design improvements and targeted repairs when issues arise.

Failure Mode 1: Edge migration and lateral creep

• Cause: Inadequate or improperly anchored edge restraints; downslope gravity forces overcome friction
• Symptoms: Perimeter setts shift downhill; gaps open at uphill edge; bulging at downhill edge
• Remediation: Remove failed edge zone (typically 12–24 inches wide); install reinforced concrete haunch extending 8–12 inches under field pavers; anchor with rebar dowels into base; reset setts with mortar bed and joints; estimated cost $35–$65 per linear foot remediation (typical guidance)

Failure Mode 2: Channelized joint washout

• Cause: Concentrated runoff flowing along joints; inadequate drainage interception; loose jointing material
• Symptoms: Eroded joints forming channels; exposed bedding; setts rocking in place
• Remediation: Clean out affected joints completely; install lateral drainage interception upslope (French drain or linear trench); refill joints with mortar or bonded polymeric product; consider perpendicular banding to interrupt flow; estimated downtime 2–4 days for 50–100 sq ft repair

Failure Mode 3: Bedding washout and sett rocking

• Cause: Subsurface water flow undermining bedding layer; inadequate base drainage
• Symptoms: Setts rock when stepped on; voids visible beneath lifted units; surface settlement
• Remediation: Lift affected setts; remove compromised bedding; install or improve underdrain system; replace bedding with mortar bed or stabilized aggregate; reset setts; compact and re-joint; estimated cost $15–$30 per sq ft for localized repair (typical guidance)

Failure Mode 4: Base erosion and piping

• Cause: Subsurface flow moving through base aggregate creating voids (piping); poor compaction; missing geotextile
• Symptoms: Large settled areas; surface depressions following runoff paths; visible voids when setts lifted
• Remediation: Major repair required; remove setts and bedding over affected zone; excavate compromised base; install geotextile if missing; add underdrain system; rebuild base in compacted lifts; reinstall setts; estimated cost $25–$50 per sq ft (typical guidance)

Failure Mode 5: Freeze-heave settlement

• Cause: Water trapped in base freezes and expands, lifting pavement; thaw causes collapse and settlement
• Symptoms: Seasonal heaving and settlement; cracked setts near joints; uneven surface after winter
• Remediation: Improve subsurface drainage to eliminate water ponding in base; verify frost-depth base penetration; may require excavation to frost line and installation of insulation board or increased base depth in extreme climates

Preventive strategies:

• Address drainage comprehensively during initial design—failures almost always trace to water management
• Specify proper edge restraints with adequate embedment and haunching
• Use bonded jointing materials on slopes >6% or in wash-prone areas
• Conduct thorough QA testing before final acceptance

Tools, Equipment & Safety — What Crews Need on Sloped Jobsites

Specialized tools and safety equipment ensure efficient, safe slope installations.

Essential tools and equipment:

• Plate compactor (minimum 5,000 lb centrifugal force) with protective rubber pad for bedding compaction
• Vibratory roller or walk-behind compactor for base layers (steep slopes may require smaller equipment for access)
• Laser level or builder’s transit for establishing grade reference lines
• 10-foot straightedge and 4-foot level for verifying surface plane
• Masonry wet saw with diamond blade for cutting setts and creating wedges
• Rubber mallets (2–3 lb) for setting and adjusting setts
• Trowels, pointing bags, and jointing tools for mortar work
• Wheelbarrows or motorized buggies for material transport upslope (consider conveyor belt for long, steep sites)
• String lines and stakes for layout control
• Excavation equipment: mini-excavator or skid-steer with appropriate slope attachments

Safety equipment (OSHA compliance):

• Fall protection harnesses, lanyards, and anchor systems for slopes >4:1 (25%)
• Hard hats, safety glasses, steel-toed boots, and work gloves (standard PPE)
• Hearing protection for operating compaction and cutting equipment
• Respirators or dust masks when cutting stone (silica dust hazard)
• High-visibility vests for roadside or active-traffic work zones
• First aid kit and emergency communication device

Erosion and sediment control:

• Silt fencing and stakes for perimeter protection during construction
• Erosion control blankets or mats for exposed slopes
• Sandbags or check dams for temporary flow diversion
• Sediment trap or basin for large sites (>1 acre disturbance)

Crew sizing:

• Typical crew: 3–5 workers for most residential/light commercial slope installations
• Lead mason or foreman (experienced with setts and slope installations)
• 2 laborers for material handling, base prep, and compaction
• Equipment operator for excavation and base placement
• Crew production rate on slopes: 40–70 sq ft per day per mason (typical guidance — varies significantly with slope steepness, pattern complexity, and sett regularity)

Safety protocols:

• Daily toolbox safety talks covering slope-specific hazards
• Secure staging areas; prevent materials from rolling downslope
• Establish clear communication signals for equipment operation on grades
• Monitor weather; cease work during rain or icy conditions on steep slopes
• Provide hydration and shade breaks during hot weather (heat stress risk elevated when working on sun-exposed slopes)

Case Examples & Layout Templates

These modeled templates provide starting-point specifications for common sloped cobble sett applications. Adjust for site-specific conditions, local codes, and engineering recommendations.

Template 1: Gentle Slope Pedestrian Path (~5% longitudinal slope)

• Application: Residential walkway, courtyard connector, park path
• Sett specification: Medium granite setts (4–6 inch face, 60 mm thickness, thermal finish)
• Base: 5 inches compacted crushed stone; geotextile on clay subgrades
• Bedding: 1.5 inch coarse sand, screeded level
• Jointing: Polymeric sand; 8–10 mm joints
• Drainage: 2% cross-slope; French drain along downslope edge; 4-inch perforated underdrain pipe in stone trench
• Edge restraint: Aluminum L-edging with 10-inch spikes every 24 inches

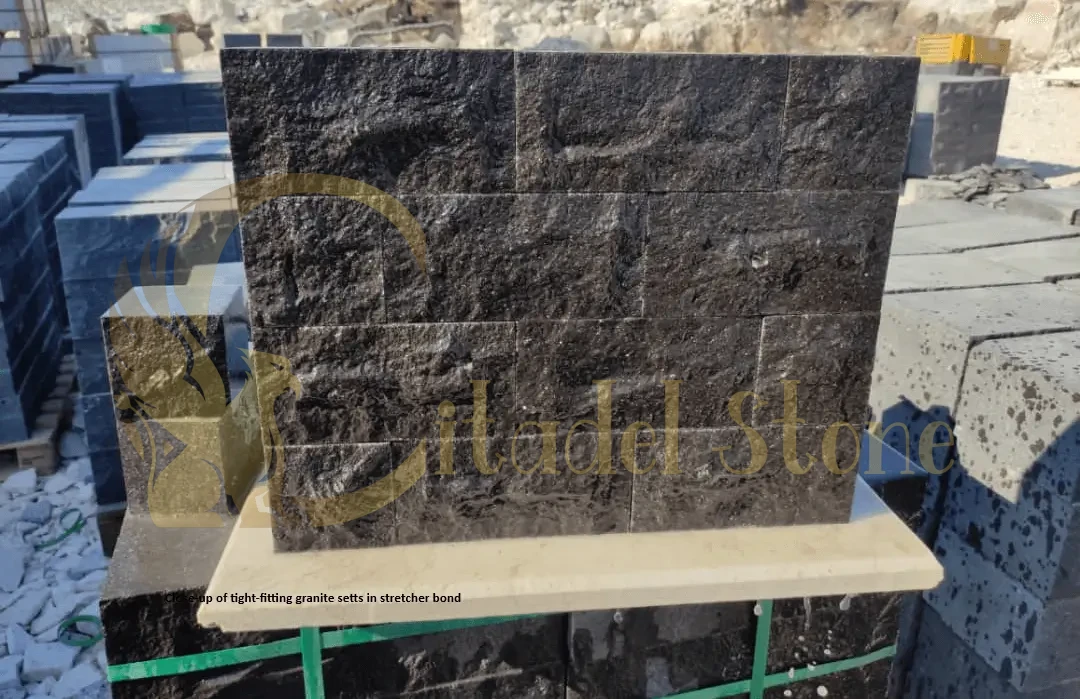

• Pattern: Stretcher bond or random coursing
• Estimated installed cost: $35–$55 per sq ft (typical guidance — modeled example)

Template 2: Residential Driveway (~8–12% slope with reinforced transition pads)

• Application: Single or double-car driveway on moderate hillside
• Sett specification: Large granite setts (6–8 inch face, 80 mm thickness, rock-face finish for traction)
• Base: 8 inches compacted crushed stone; biaxial geogrid at mid-depth; 10 inches at garage transition zone
• Bedding: Mortar bed (1.5 inch Type S mortar over 4-inch concrete slab)
• Jointing: Mortar joints (matching bedding mix); 8 mm joints, fully filled and tooled
• Drainage: 2% cross-slope; linear trench drain at garage approach; 6-inch underdrain pipe along edges; catch basin at low point
• Edge restraint: Concrete curb with 8-inch haunch extending under field pavers; rebar dowels every 48 inches
• Pattern: Herringbone (maximum interlock and lateral stability)
• Special features: Concrete turnout pad (4-inch reinforced slab) at garage threshold; transition to setts 6–10 feet downslope
• Estimated installed cost: $55–$85 per sq ft (typical guidance — modeled example)

Template 3: Stepped Terrace Driveway (>12% but ≤18% with steps and runoff banding)

• Application: Steep hillside driveway requiring terraced design
• Layout: Divide slope into 3–5 level terraces (20–30 feet length each) separated by 6-inch risers
• Sett specification: Large granite setts (6–8 inch face, 80–100 mm thickness, thermal finish)
• Base: 10 inches compacted crushed stone on terraces; reinforced concrete or stone-block risers between levels
• Bedding: Mortar bed on concrete slab for entire driveway (rigid installation required)
• Jointing: Mortar joints; 8–10 mm width
• Drainage: Linear drain at base of each riser collects runoff; connects to main underdrain pipe; 4-inch pipe discharges to approved outlet
• Edge restraint: Soldier-course setts set in concrete; 10-inch haunch
• Banding: 8-inch wide basalt sett bands perpendicular to slope at 15-foot intervals on each terrace (slows runoff, adds visual interest)
• Pattern: Stretcher bond on terraces; risers faced with matching sett material
• Estimated installed cost: $75–$120 per sq ft (typical guidance — includes riser construction and complex drainage)

These templates serve as starting points. Request a Slope Installation Spec & Sample Board for customized designs incorporating your site’s unique conditions, local material availability, and code requirements.

Our premium cobble setts — regional specification notes

This short, hypothetical briefing explains how Citadel Stone – top cobble setts could be considered for different U.S. locations. It would offer conditional, city-focused pointers to help specifiers balance finishes, thickness and durability without implying any real projects or outcomes.

Austin, TX

Austin’s humid subtropical climate, hot summers and occasional intense storms would steer specification toward heat-resistant, low-porosity stone that copes with wet–dry cycles and heavy rainfall. For Austin, a honed or lightly textured finish could reduce glare while maintaining grip after summer storms; polished faces might be reserved for shaded, ornamental areas. Use 20–30 mm for patios; 30–40 mm for light vehicle areas as a starting point and consider slightly thicker units where irrigation trucks or service loads are expected. Citadel Stone could provide limestone samples, technical datasheets, jointing notes and palletised sample delivery to support local specification dialogue. Our cobble setts would be offered with conditional installation recommendations and maintenance guidance.

Baltimore, MD

Baltimore’s estuarine setting brings salt-laden air, humid summers and cold winters with occasional freeze–thaw action; these factors would inform material choice. In Baltimore, a low-porosity limestone with a textured or sawn finish would be recommended to resist salt spray and to improve slip resistance in damp harbour-front zones; honed finishes may suit protected courtyards. Adopt 20–30 mm for patios; 30–40 mm for light vehicle areas as general guidance, and consider robust edge restraint in flood-prone streets. Citadel Stone – top cobble setts could be accompanied by coastal performance notes, sample boards, specification templates and palletised delivery options to help refine tender documents. Our cobble setts might also be specified alongside subbase and drainage recommendations tailored to tidal influence.

Anchorage, AK

Anchorage’s subarctic maritime climate, deep freezes and coastal salt exposure would prioritise frost resistance and low water absorption. For Anchorage, a coarse textured or sawn finish could reduce freeze–thaw stress and improve winter traction; polished surfaces would generally be discouraged in exposed exteriors. Use 20–30 mm for patios; 30–40 mm for light vehicle areas as conservative baseline guidance, but specifiers might opt for thicker units and reinforced bedding where ploughing or heavy snow loads are likely. Citadel Stone could supply freeze-test summaries, technical datasheets, sample pallets and conditional installation notes to inform cold-climate detailing. Our cobble setts would be suggested with recommendations for salt-mitigating joint mortars and resilient edge details.

Sacramento, CA

Sacramento’s hot, dry summers and occasional winter flooding potential would point to UV-stable, low-absorption stone and careful jointing to manage runoff. For Sacramento, a honed or lightly textured finish would reduce solar glare and help maintain a comfortable surface temperature; polished treatments could be used in shaded or interior thresholds. Follow 20–30 mm for patios; 30–40 mm for light vehicle areas as a typical guide, and consider lighter tones to limit heat gain on exposed terraces. Citadel Stone – top cobble setts could be offered with UV-stability notes, finish swatches, technical datasheets and palletised sample deliveries to assist decision-making. Our cobble setts might be paired with recommended movement-joint detailing to cope with thermal cycling.

Boise, ID

Boise’s high-desert environment, cold winters with occasional freeze and strong sunlight would require attention to thermal movement, salt use and abrasion resistance. For Boise, a low-porosity limestone with a textured or brushed surface would be suggested to balance slip resistance and frost durability; honed finishes could work in protected spaces. Apply 20–30 mm for patios; 30–40 mm for light vehicle areas as a working baseline, and consider site-specific subbase depth to account for seasonal ground movement. Citadel Stone could provide localised specification notes, sample boards, technical datasheets and palletised sample packs to help inform engineering and landscape choices. Our cobble setts would be recommended with advice on joint filling and sand grades suited to freeze–thaw cycles.

St. Louis, MO

St. Louis’s humid continental climate with hot, wet summers and cold winters would influence choices around biological staining, drainage and salt exposure from winter maintenance. For St. Louis, a textured or grooved finish could help mitigate slip risk in heavy rain and when surfaces are soiled by leaf debris; honed finishes might be suitable in sunlit plazas. Use 20–30 mm for patios; 30–40 mm for light vehicle areas as a typical guideline, and specify strong edge restraint and drainage where flooding or street runoff is expected. Citadel Stone could supply maintenance notes, technical datasheets, sample pallets and conditional specification support to assist local teams. Our cobble setts would be offered with suggested cleaning regimes to help manage organic staining in tree-lined urban areas.

Frequently Asked Questions

Q: What slope is too steep for cobble setts? A: For pedestrian pathways, slopes above approximately 18% become impractical without steps; for vehicle driveways, keep slopes below 12% where possible, and always below 15% (typical guidance — US example). Consult local building codes and engage a civil engineer for slopes approaching these limits or where soil stability, drainage, or traffic loads are concerns.

Q: Which jointing material holds best on slopes? A: Mortar joints or bonded polymeric mortars resist washout and erosion far better than loose dry sand or standard polymeric sand on slopes. For slopes exceeding 6–8% or areas with concentrated runoff, specify full-depth mortar joints or high-performance polymer-modified jointing products designed for slope applications.

Q: How do I prevent scouring on a steep driveway? A: Install comprehensive drainage interception (linear drains at transitions, French drains along edges, underdrain beneath pavement), use mortar joints to lock setts together, incorporate perpendicular banding or bulwarks to slow runoff velocity, and ensure robust edge restraints with concrete haunching prevent lateral migration. Address all four elements for effective scour prevention.

Q: Can I use permeable base on a slope? A: Yes, with careful engineering. Permeable bases (open-graded crushed stone with wide-joint setts) work on slopes when combined with underdrain collection systems to prevent uncontrolled piping and erosion. Avoid purely infiltration-based permeable systems on steep slopes (>8%) or highly erodible soils without professional drainage design and subsurface controls.

Q: What maintenance should owners expect? A: Annual inspections for joint washout, edge stability, and drainage function; periodic joint topping (mortar or polymeric material) every 5–10 years depending on traffic and weather; cleaning of drain grates and catch basins to maintain flow; spot repair of any settled or damaged setts. Well-installed slope pavements require modest maintenance and deliver decades of service.

Q: When should I hire a civil engineer? A: Engage a licensed civil engineer for projects involving slopes affecting stormwater runoff patterns, retaining walls, vehicular access over 8–10% slope, sites with poor soils or prior failures, jurisdictions requiring engineered drainage plans, or any project where code compliance, liability, or long-term performance justify professional design. Engineers provide base and drainage calculations, prepare permit-ready plans, and specify reinforcement strategies that prevent costly failures.
