Structural compliance is the first variable you need to resolve when buying 4x4x8 granite cobblestones in Arizona — before aesthetics, before pricing, before anything else. Arizona’s residential and commercial hardscape codes specify minimum material thickness, base depth, and edge restraint standards that directly influence whether your cobblestone installation passes inspection or gets flagged for remediation. The 4x4x8 dimension isn’t arbitrary; it exists at the intersection of manageable unit weight and load-bearing adequacy, and understanding how that geometry interacts with Arizona’s specific code environment is where a successful specification begins.
What Arizona Building Codes Require for Cobblestone Installations
Arizona follows the International Building Code (IBC) framework with state and municipal amendments, and those amendments matter considerably when you’re specifying unit masonry for driveways, pathways, and hardscape borders. You’ll find that load classification drives the base depth requirement more than any other single variable — a pedestrian pathway calls for a different structural assembly than a vehicular driveway rated for pickup trucks or delivery vehicles.
For vehicular applications, most Arizona jurisdictions require a compacted aggregate base of 6–8 inches minimum, with some municipalities mandating engineered sub-base documentation for driveways above a certain area threshold. The 4x4x8 granite cobblestone unit at its nominal 8-inch bedding depth provides adequate structural mass for these applications when installed on a properly graded base with edge restraint. What often gets overlooked is the edge restraint specification — many failed installations in Arizona trace back to inadequate lateral confinement, not the stone itself.
- IBC-aligned Arizona codes classify driveways as light vehicular or heavy vehicular — your specification must match the actual load class
- Base compaction requirements typically target 95% Proctor density for vehicular-rated installations
- Edge restraint systems must be pinned at maximum 24-inch centers in most Arizona municipalities
- Permeable paving installations have separate code pathways that may affect joint width and bedding sand specification
- Some HOA-governed communities in metro Phoenix overlay additional material finish and dimension standards on top of municipal code
The detail that matters most in Arizona’s regulatory environment is the drainage slope requirement. Most jurisdictions mandate a minimum 2% cross-slope for hardscape surfaces draining to landscaping, and a minimum 1% slope for surfaces draining to collection systems. Your 4x4x8 cobblestone layout needs to be graded and set to maintain that slope consistently across the field — a seemingly minor deviation that accumulates water against a foundation can trigger code deficiency notices in cities like Chandler, where post-construction inspections for drainage compliance are increasingly routine.
Seismic Considerations and Load-Bearing Specs for Arizona Projects
Arizona sits in a moderate seismic zone, and while the state doesn’t experience the high-frequency seismic activity of California’s coastal corridor, the Phoenix Basin and Tucson metro areas sit near fault systems that produce ground movement capable of disrupting improperly bedded unit masonry. You’re not engineering for a major seismic event, but the seismic design provisions in IBC Chapter 16 still influence how your base assembly and joint system should perform under lateral stress.
Granite’s compressive strength — typically ranging from 19,000 to 28,000 PSI depending on quarry and finish — gives 4x4x8 units more than adequate structural capacity for Arizona residential applications. The failure mode in seismic events for cobblestone isn’t unit fracture; it’s joint destabilization and unit displacement. That means your polymeric sand specification and joint profile become the seismic vulnerability point, not the stone itself.
- Granite cobblestones in the 4x4x8 dimension typically weigh 12–15 lbs per unit depending on density — plan your truck delivery access for full pallet weights exceeding 2,000 lbs
- Polymeric sand with a minimum 28-day cure before vehicular traffic reduces joint destabilization risk significantly
- A minimum 1-inch bedding sand layer (ASTM C33 concrete sand) provides the lateral displacement buffer the IBC recommends for unit masonry in moderate seismic zones
- Split-face finish units interlock with adjacent units more effectively than sawn-face under lateral loading, providing inherent resistance to displacement
Selecting uniform cobble dimensions in Arizona is particularly important when seismic performance is a consideration — mixed-dimension installations create differential settlement patterns that amplify under ground movement. Consistent 4x4x8 units allow your base system to behave as a unified structural assembly rather than a collection of individually loaded points. Arizona residential cobblestone dimension selection tips from experienced structural installers reinforce this point: uniform geometry is a load-distribution advantage, not just an aesthetic preference.
Understanding the 4x4x8 Dimension: Why It Works in Arizona’s Structural Context
The 4x4x8 nominal dimension represents a specific balance of unit weight, installation efficiency, and structural adequacy. You’re looking at a unit that two workers can handle comfortably without mechanical lifting equipment, while still delivering the mass and footprint needed for stable vehicular-rated installations. That’s not a coincidence — it’s a dimension that has been refined through decades of hardscape specification practice.
In Arizona’s residential context, the 8-inch length dimension runs perpendicular to traffic direction in most driveway applications, which maximizes the bearing surface presented to wheel loads. Your pattern layout should account for this — a running bond or herringbone pattern with the 8-inch axis crossing the primary traffic path distributes wheel loads across more joint lines, reducing the point-load concentration at any single unit edge.
- Nominal vs. actual dimensions: Arizona suppliers typically ship 4x4x8 cobblestones at ±1/4 inch tolerance — verify actual dimensions against nominal before ordering
- For ADA-compliant pathways, surface variation between adjacent units must not exceed 1/4 inch — split-face units require careful selection for pathway applications
- The 4-inch height provides adequate mass for vehicular applications when properly bedded — thinner units require engineered base compensation
- Thermal expansion of granite at approximately 4.4 × 10⁻⁶ per °F is significantly lower than concrete, reducing joint stress accumulation in Arizona’s high-amplitude temperature cycles
This 4x4x8 natural stone cobble guide for AZ buyers would be incomplete without addressing the dimensional consistency question that actually determines project success. Natural granite is quarried in seams, and seam variability can produce dimensional drift across a large order. Specify dimensional tolerance requirements in writing before purchasing — a 1/4 inch tolerance is standard, but some quarry operations produce units at 3/8 inch tolerance, which creates visible joint irregularities in tightly laid patterns.
Split-Face vs. Sawn-Face: Finish Selection for Arizona Applications
The finish specification on your 4x4x8 granite cobblestone units directly affects slip resistance, structural interlock, and long-term aesthetic performance — all of which intersect with Arizona’s building code requirements and climate conditions. Split-face cobblestone units available across Arizona are the dominant choice for residential driveways and pathways for reasons that go beyond aesthetics.
Split-face cobblestone units available across Arizona typically achieve a dynamic coefficient of friction (DCOF) above 0.42 when dry, which satisfies ANSI A137.1 requirements for exterior hardscape surfaces. Sawn-face granite, while dimensionally more precise, can drop below 0.35 DCOF when wet — a liability concern for any ADA-designated pathway or pool-adjacent application. That distinction alone often determines finish selection before any other factor is discussed.
- Split-face texture creates mechanical interlock between adjacent units that resists lateral displacement — a functional advantage over sawn-face in seismic applications
- The irregular surface of split-face finish is more forgiving of minor dimensional variation between units, simplifying installation on non-uniform sub-grades
- Sawn-face finish suits formal entry courtyard applications where dimensional precision and uniform joint width are prioritized over slip resistance
- Arizona’s intense UV exposure degrades some topical sealers faster on sawn-face surfaces — split-face finish maintains appearance with less sealer intervention
- For pool surrounds and spa decking, split-face finish is the only code-compliant choice in most Arizona municipalities
When reviewing product samples, pay attention to the face area variation — split-face units from different quarry operations can range from a lightly textured cleft to a deeply fractured surface with 1/2 inch of relief. For tight joint installations (3/8 inch or less), a moderate cleft is preferable to a deep fracture. At Citadel Stone, we review face texture samples from each warehouse shipment specifically for this variable because it affects both installation difficulty and the final aesthetic result at a level that photos don’t capture.
For projects in Peoria where many residential developments require HOA design review, Peoria HOA boards frequently request finish samples as part of the material approval process — having documented finish specifications from your supplier accelerates that review considerably.
Base Preparation Standards That Determine Cobblestone Longevity
Base preparation is where Arizona’s soil conditions interact most directly with code requirements, and it’s the variable that most residential buyers underestimate when buying 4x4x8 granite cobblestones in Arizona. The Valley’s expansive clay soils — prevalent across the East Valley and significant portions of the West Valley — create a dynamic sub-grade that responds to moisture with volumetric changes that standard concrete sub-bases handle poorly and that granular base systems handle well when properly designed.
Expansive soil classifications under ASTM D4829 drive your sub-base specification. A high-plasticity clay sub-grade (PI above 35) requires either a lime-stabilized treatment layer or a geotextile separation fabric between native soil and aggregate base. Without this, the base aggregate migrates into the clay during wet cycles, producing differential settlement that becomes visible as surface undulation within 2–3 years.
- Standard pedestrian pathway base: 4 inches compacted Class II aggregate (AZDOT specification) over geotextile on clay sub-grades
- Residential driveway base: 6 inches minimum compacted aggregate, with 8 inches recommended in clay-dominant soil profiles
- Heavy vehicular or commercial applications require geotechnical assessment for base design — don’t spec standard residential base depths for applications outside their load class
- Caliche hardpan, prevalent across much of metro Phoenix, can substitute for engineered aggregate when properly scarified — confirm hardpan depth before specifying import aggregate quantities
You can order Citadel Stone split-face cobblestone Arizona units with documented density specifications that help your geotechnical engineer validate base depth requirements against actual unit loading — this documentation is increasingly requested by Arizona municipal inspectors on permitted driveway projects.

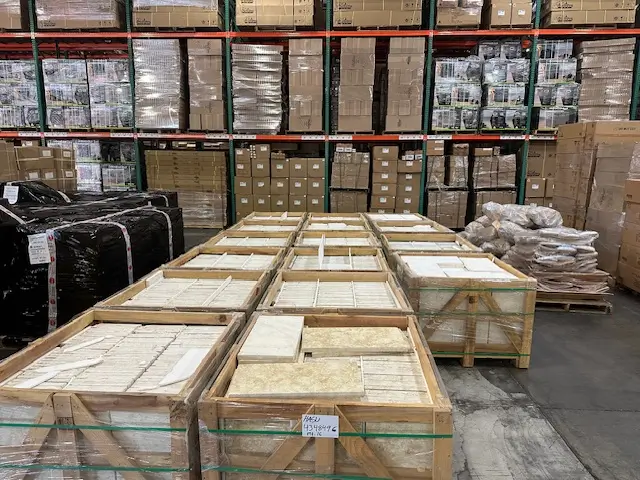

Ordering, Logistics, and Warehouse Availability for Arizona Projects
Project planning for granite cobblestone installations in Arizona involves more logistical variables than most buyers anticipate, and getting the sequence wrong adds cost and delays that erode your material savings. The first variable to resolve is warehouse stock versus quarry lead time — these two supply paths have dramatically different timelines and cost profiles.
Warehouse-stocked 4x4x8 granite cobblestone typically ships within 5–7 business days in Arizona, while a direct quarry order for a specific color or finish can run 8–14 weeks depending on origin. If your project timeline is fixed — a common constraint for permitted work in Arizona where inspection scheduling drives completion dates — verify warehouse stock before committing to a material specification. Changing stone color or finish mid-project because your specified material wasn’t available is a costly disruption that affects both installation schedule and budget.
- Order a minimum 10% overage above calculated coverage area to account for cuts, pattern waste, and future repairs
- Confirm truck access to your delivery site before ordering — full pallets of granite cobblestone require a flatbed or curtainside delivery vehicle, and some residential streets have weight restrictions or low-clearance obstructions
- Request a sample unit from the specific warehouse lot before full delivery — granite color and finish can vary between production runs even within the same quarry designation
- Schedule delivery to coincide with base preparation completion — storing pallets on an unprotected driveway for more than 2 weeks invites moisture infiltration and potential staining on lighter granite varieties
One consistently overlooked step when ordering: schedule your bedding sand and polymeric joint sand at the same time as your stone. Supply chain disruptions affect aggregate materials as much as natural stone, and a delayed sand delivery can stall an installation that’s already partially set — a situation where exposed, unbedded stone becomes a safety and weather-exposure liability.
Color Selection and Long-Term Performance in Arizona’s Heat Environment
Granite’s thermal performance is a supporting consideration — not the lead factor — but you still need to account for it in your Arizona specification. The Valley’s ambient conditions push surface temperatures on dark granite above 140°F during peak summer hours, which affects both user comfort and the long-term performance of any polymeric joint compound or sealer you apply. This isn’t a reason to avoid dark granite cobblestones, but it does require specific product selection for companion materials.
In Tempe, where dense urban infill creates elevated ambient heat conditions relative to suburban neighborhoods, light to mid-tone granite cobblestones in buff, silver-grey, or multicolored varieties have become the dominant specification for pedestrian-priority hardscape around mixed-use developments. The surface temperature differential between dark and light granite at peak exposure can reach 25–35°F — a meaningful comfort variable for heavily trafficked pedestrian surfaces.
- Light-colored granite cobblestones (buff, silver, white-grey) maintain surface temperatures 20–35°F lower than dark varieties under Arizona’s peak summer sun
- UV exposure at Arizona’s latitude accelerates color fade in some granite varieties — request a UV stability rating or weathering data for your specific stone
- Polymeric joint sand rated for high-temperature applications (above 120°F surface temp) is mandatory in Arizona — standard formulations soften and track under Phoenix summer conditions
- Penetrating sealers perform better than topical film-forming sealers in Arizona’s UV environment — film-forming sealers delaminate on surface temperatures above 130°F
Pattern Layout and Its Effect on Structural Performance
Pattern layout isn’t just an aesthetic decision — it’s a structural one. The orientation and bond pattern of 4x4x8 cobblestone units determines how load is distributed across the installation and how well the field resists the lateral forces generated by vehicular turning movements. Running bond patterns aligned with traffic direction concentrate load along continuous joint lines, which are the installation’s structural weak points.
Herringbone pattern at 45 degrees to the primary traffic direction is the most structurally efficient layout for vehicular driveways. The diagonal orientation means no continuous joint line runs perpendicular or parallel to traffic — wheel loads always cross multiple joints, distributing stress across a wider area of the field. This is a detail that’s well understood in commercial hardscape but often overlooked in residential specifications where aesthetics drive pattern selection. Applying these Arizona residential cobblestone dimension selection tips at the layout stage — before the first unit is bedded — is far less expensive than corrective re-installation later.
- Herringbone at 45° to traffic direction: highest structural efficiency for vehicular applications
- Running bond perpendicular to traffic: acceptable for pedestrian pathways, not recommended for driveways
- Stack bond: avoid for any structural application — continuous bidirectional joint lines create weak planes that fail under load cycling
- Circular fan patterns: structurally adequate for low-traffic courtyard applications when center units are cut and bedded individually
- Basket weave: suitable for pedestrian-only areas; the alternating 4-inch and 8-inch faces require careful dimensional consistency between units
Spec Wrap-Up: Getting Your 4x4x8 Cobblestone Specification Right
Every specification decision for buying 4x4x8 granite cobblestones in Arizona connects back to a structural or code-compliance foundation. The dimension, the finish, the base depth, the pattern layout, and the companion material selections are all downstream of the load classification, soil conditions, and municipal standards that govern your specific project and jurisdiction. Getting the structural framework right first is what separates installations that perform for 25 years from those that require remediation at year 7.
Document your specification thoroughly — material density, finish type, dimensional tolerance, and base system design — before purchasing. Arizona municipal inspectors increasingly request this documentation on permitted hardscape projects, and having it ready accelerates approvals. For projects that encounter post-installation settling or joint failure, 4x4x8 Cobblestone Driveway in Arizona: Fix It Guide provides targeted remediation guidance for driveway installations — worth reviewing before your installation schedule is finalized.
At Citadel Stone, we maintain documented quarry sourcing and density data for our granite cobblestone inventory precisely because Arizona’s regulatory environment increasingly demands it — and because that documentation helps you make a better specification decision before the first unit is set. Citadel Stone provides 4x4x8 granite cobblestone samples with documented density and finish specifications to Scottsdale, Gilbert, and Tucson buyers selecting units for Arizona residential driveway and pathway applications.
