Thermal cycling — not raw heat — is the variable that separates a beige stone tile outdoor Arizona installation that holds for 25 years from one that starts showing joint failure and surface spalling within a decade. Phoenix sees temperature swings of 40°F or more between pre-dawn and mid-afternoon in a single day, and that cycling creates cumulative micro-stress at every interface: stone-to-mortar, mortar-to-base, grout-to-edge. Understanding how different beige stone types respond to that mechanical reality is where your material comparison needs to start.
Why Thermal Cycling Defines the Comparison
Arizona’s outdoor temperature profile is genuinely unusual. The Sonoran Desert doesn’t just get hot — it swings. Tucson routinely records a 35–45°F diurnal range during spring and fall, and even summer nights drop enough to create meaningful expansion-contraction cycles in dense stone materials. At the same time, Flagstaff’s elevation introduces actual freeze-thaw conditions in winter months, with overnight lows that can push stone pores through repeated phase-change stress. Any comparison of beige stone floor tiles in Arizona that ignores this cycling dynamic is comparing the wrong variable.
Natural stone expands and contracts at rates determined by mineral composition and crystalline structure. For a beige limestone running around 4.4 × 10⁻⁶ per °F and a travertine in the 4.6 × 10⁻⁶ per °F range, a 50°F daily swing produces roughly 0.026 inches of dimensional change per 10-foot run. That sounds minor until you multiply it across a 600-square-foot patio over 3,650 daily cycles. Your joint design and base system need to accommodate that movement — and different stone types demand different accommodation strategies.

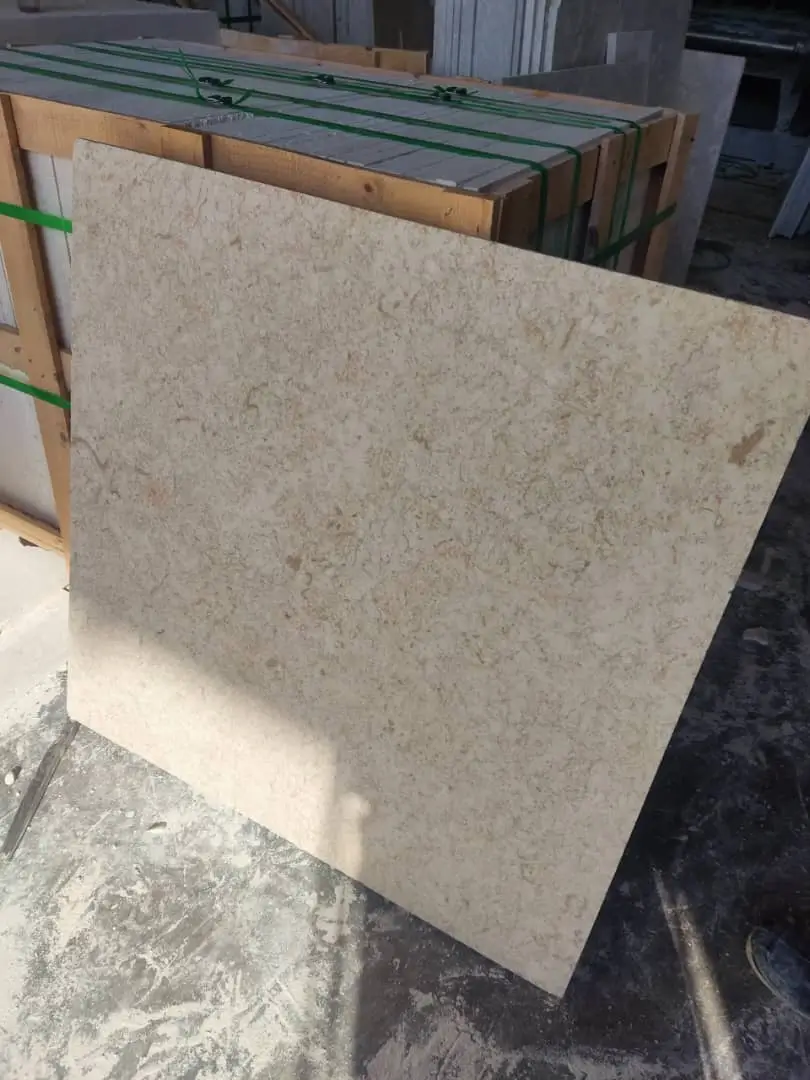

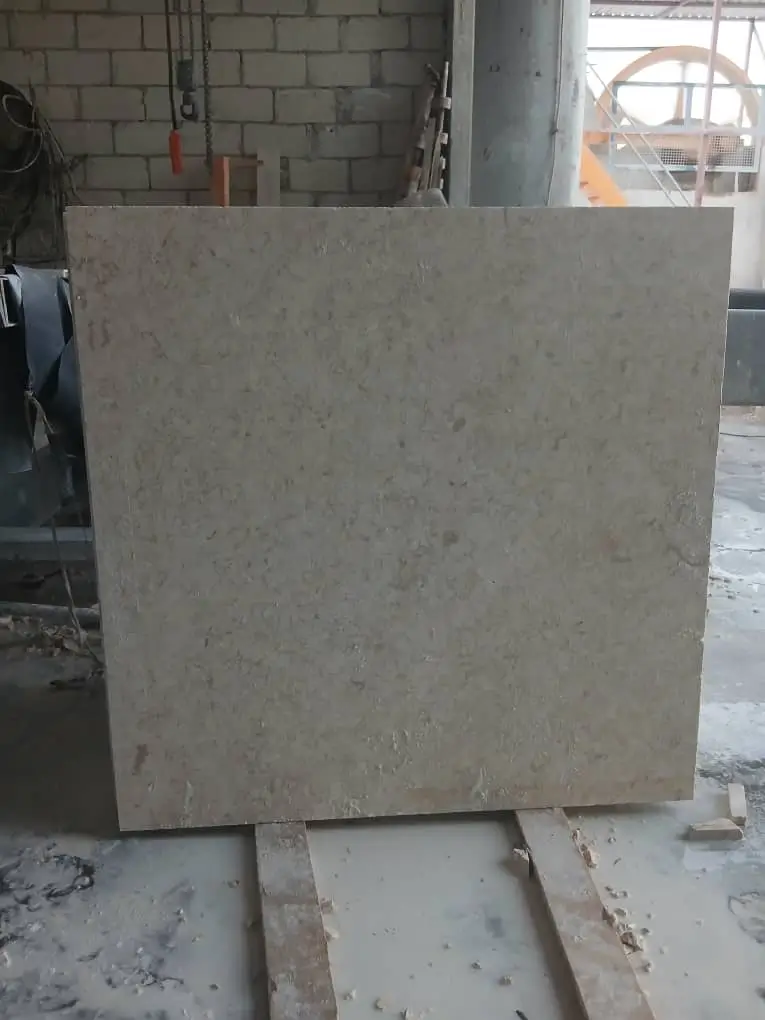

Limestone Performance Under Arizona Cycling
Beige limestone is among the most widely specified natural beige stone flooring varieties across Arizona, and for good reason. Its calcium carbonate matrix provides a relatively uniform thermal expansion coefficient, which makes joint spacing calculations predictable. Spec your expansion joints at 12–15 feet on center in full-sun exposure — not the 20 feet some generic literature suggests — and you’ll avoid the compressive buckling that shows up in limestone patios around year 5 to 8 when joints were undersized.
The porosity profile matters too. According to NSI limestone technical data, limestone absorption values range from under 3% in dense calcitic varieties to over 12% in softer oolitic types. For Arizona outdoor use, you want absorption under 6% — tighter pore structure means less water infiltration at elevation sites like Flagstaff where freeze-thaw cycles are real, not theoretical. At Citadel Stone, we test absorption rates on incoming limestone shipments before they hit the warehouse floor, because the variance between quarry lots from the same region can be surprisingly wide.
- Thermal expansion coefficient: approximately 4.4 × 10⁻⁶ per °F — compatible with standard polymer-modified mortars
- Compressive strength typically 6,000–10,000 PSI for dense beige varieties — adequate for patio and pool deck loads
- Absorption under 6% recommended for any Arizona installation exposed to temperature cycling
- Honed finish preferred over polished in outdoor settings — maintains grip coefficient above 0.60 dynamic COF when wet
Travertine: Thermal Behavior and Trade-Offs
Travertine occupies a different position in the light-colored stone tile durability conversation for Arizona. Its interconnected void structure — those characteristic voids either left open or filled with grout or resin — creates a thermal performance profile that’s actually advantageous in surface temperature terms. Open-void travertine surfaces run measurably cooler underfoot than dense limestone because the air pockets reduce conductive heat transfer. For barefoot pool deck use in Scottsdale, that’s a meaningful spec decision.
The trade-off comes at the joint and void level during thermal cycling. Filled travertine uses epoxy or cementitious fill materials with expansion coefficients that differ significantly from the stone itself — often by a factor of 3–5x. Over hundreds of daily cycles, you’ll see fill material debonding from the stone walls of the void, creating entry points for moisture. In areas with freeze risk, that moisture becomes destructive. For Scottsdale pool decks without freeze exposure, filled travertine performs reliably with the right fill spec. For Flagstaff or high-elevation sites, unfilled or partially filled travertine with a flexible grout is the safer choice. According to ASTM C1527 travertine dimension stone standards, travertine specified for exterior use should meet density and absorption criteria that directly address this cycling vulnerability.
- Open-void surface structure reduces surface temperature by 8–14°F compared to dense stone in direct sun — valuable for Arizona outdoor beige tile heat performance
- Filled travertine requires fill material with matched or closely compatible thermal expansion — epoxy fills typically fail faster than cementitious alternatives in cycling conditions
- Minimum 2-inch thickness for outdoor Arizona applications; 2.5 inches for vehicular or heavy-load zones
- Sealing frequency: every 18–24 months for outdoor travertine in Arizona, not the 3–5 year cycles marketed for interior use
Sandstone and Quartzite as Beige Alternatives
Sandstone and quartzite get overlooked when comparing beige stone floor options in Arizona, but they each bring distinct advantages for specific project types. Arizona buff sandstone — quarried in-state — has a thermal expansion coefficient close to limestone but higher natural porosity, which you’ll need to manage with penetrating sealers applied in two perpendicular coats. Its layered sedimentary structure means cleft-finish surfaces provide excellent slip resistance without mechanical treatment, hitting 0.65–0.80 COF even when wet.
Quartzite is the performance outlier in the beige stone category. Its metamorphic silica matrix gives it compressive strength above 20,000 PSI and an absorption rate under 1% — numbers that make freeze-thaw vulnerability essentially irrelevant even at high elevation. The trade-off is cost and hardness: quartzite is significantly harder to cut and fabricate, driving up labor costs, and its density means it retains and radiates heat more aggressively than travertine or open-pore limestone. For a Tucson driveway or high-traffic patio, that durability premium may be worth it. For a pool deck where barefoot comfort matters, quartzite’s thermal mass works against you.
Base System Requirements for Thermal Movement
The stone you select matters less than most specifiers admit — base preparation determines whether thermal cycling causes cumulative joint failure or gets absorbed gracefully. Your aggregate base needs to be compacted to 95% Proctor density, and in clay-heavy soils common in parts of the Phoenix metro, you’ll want a geotextile separation layer between the native soil and your road base to prevent clay migration into the aggregate over time. Clay migration reduces drainage efficiency, and standing water in joints accelerates both freeze-thaw damage and salt crystallization in porous stones.
For mortar-set installations, polymer-modified mortars rated for exterior use are non-negotiable in Arizona’s temperature range. Standard Type S mortar becomes brittle under repeated thermal cycling — you’ll see hairline cracks running through the mortar bed within 3–5 years in full-sun exposures. Polymer-modified mortars maintain flexibility through elongation values of 1–3%, which accommodates the stone’s thermal movement without cracking. Your setting bed thickness should run 3/4 to 1 inch for stone tiles and 1.5 inches for pavers — thinner beds don’t distribute point loads effectively and thicker beds create adhesion problems in high-heat conditions because moisture escapes the bed unevenly during curing.
- Aggregate base depth: minimum 4 inches for pedestrian patio, 6 inches for driveways or vehicular loads
- Compaction target: 95% Proctor — verify with field density testing before stone placement
- Geotextile separation layer recommended in expansive or clay-dominant soil profiles
- Polymer-modified mortar required for all exterior Arizona stone tile installations subject to thermal cycling
- Expansion joints at maximum 15-foot intervals in full-sun exposures — filled with ASTM C920 sealant, not grout
Finish Selection and Surface Temperature
Surface finish affects both thermal performance and safety in ways that don’t always get spelled out clearly in spec documents. A polished beige limestone will reach surface temperatures 15–25°F higher than a honed finish of the same stone under identical solar conditions — the mirror-like surface absorbs and retains radiant heat differently than a matte one. For Phoenix patios where occupants are barefoot or seated close to the surface, that temperature difference is experiential, not just numerical.
Brushed and tumbled finishes add a secondary benefit in Arizona: they open the stone surface slightly, which reduces the solar gain effect while simultaneously improving slip resistance. The NSI ASTM stone tile specifications provide dynamic COF benchmarks for various finishes, and brushed natural stone consistently outperforms polished in wet-condition testing — a critical consideration for light-colored stone tile durability in Arizona’s outdoor environments. For any poolside or outdoor beige tile application, finish decisions should be driven by both safety and thermal performance data — not just aesthetics. You’ll want dynamic COF above 0.60 for any surface where wet conditions are possible, and brushed or honed finishes reliably deliver that margin while also reducing Arizona outdoor beige tile heat performance concerns at foot level.
Ordering, Lead Times, and Material Planning
Material planning for beige stone tile outdoor Arizona projects requires you to account for the reality that natural stone lot consistency is never guaranteed between shipments. Your first order and your repair order five years later may look noticeably different if you don’t specify the quarry source, finish, and calibration tolerance upfront. Order 10–15% overage for complex pattern layouts and 7–10% for straightforward field tile installations — not to cover breakage alone, but to hold matching stock for future repairs.
Delivery logistics also influence your installation window. Truck access to the site affects when and how pallets of stone can be staged — overloading a residential driveway with multiple pallet drops can cause settlement in an inadequately prepared subbase. Coordinate your truck delivery schedule around your base preparation milestones so stone arrives within 2–3 days of installation readiness, not weeks before. Stone left on pallets in full Arizona sun absorbs heat unevenly and can develop surface mineral migration if moisture is present. For projects in the Phoenix metro, Citadel Stone outdoor beige tiles Arizona maintains local warehouse inventory that reduces lead times significantly compared to importing stone on a project-by-project basis.
- Specify quarry source, finish type, calibration tolerance, and lot number on purchase orders to protect future repair matching
- Order 10–15% overage for complex layouts; 7–10% for field tile grids
- Coordinate truck delivery timing within 2–3 days of base readiness
- Verify warehouse stock availability before committing to installation start dates — lead times vary seasonally
Grout and Joint Specification for Cycling Climates
Grout failure is the most common visible symptom of thermal cycling stress in beige stone tile outdoor Arizona installations — and it’s almost always a specification problem, not a product failure. Standard sanded grout in 3/16-inch joints in a full-sun Arizona patio will show hairline cracking within 2–3 years. The fix isn’t a higher-quality grout — it’s a wider joint and a more flexible product. Epoxy grout in joints under 1/4 inch performs well in temperature-stable interior environments; outdoors in Arizona, its rigidity becomes a liability as the stone moves around it.
Urethane sealant in expansion joints is non-negotiable — use ASTM C920 Type S Grade NS sealant for field joints that need to accommodate movement. For the field grout itself, unsanded or fine-sanded grout modified with latex admixtures handles cycling better than standard mixes. Joint width should be a minimum of 3/16 inch for stone tiles under 12 inches and 1/4 inch for larger formats. The TCNA natural stone tile installation standards provide detailed guidance on joint width-to-tile-size ratios that apply directly to outdoor cycling environments. Undersized joints are the single most common specification error in beige stone floor tile installations across Arizona, and the pattern holds whether you’re comparing beige stone floor options in Arizona for a Tucson courtyard or a Phoenix pool surround.
- Minimum 3/16-inch joints for tiles under 12 inches; 1/4-inch for 12-inch-plus formats
- Latex-modified sanded grout for field joints; ASTM C920 urethane sealant for expansion joints
- Avoid standard sanded grout without latex modification in any outdoor Arizona application
- Epoxy grout limited to interior or temperature-stable environments — not recommended for outdoor cycling conditions
Getting Beige Stone Tile Specifications Right for Arizona Outdoors
The right answer to which beige stone tile performs best outdoors in Arizona isn’t a single material — it’s a combination of material density, finish specification, base system, and joint design calibrated to the specific thermal cycling range your project faces. Dense honed limestone handles high-cycling environments well when joints are properly sized and the base system absorbs movement. Travertine’s surface temperature advantage makes it the preferred choice for pool decks and barefoot zones, provided the fill material is compatible with cycling stress. Quartzite earns its premium cost in high-traffic or high-elevation applications where freeze-thaw risk is real. Sandstone delivers cost-effective performance for moderate-use patios when absorption is managed through sealing.
Natural beige stone flooring varieties across Arizona vary enough in thermal expansion behavior, porosity, and surface temperature that a one-size specification doesn’t exist. Build your spec around the cycling range your specific site experiences — diurnal swings in Phoenix demand a different joint strategy than the seasonal freeze exposure in Flagstaff. Your project’s long-term performance lives in those details, not in the aesthetic choice between one beige tone and another. For a related perspective on how different Arizona stone materials handle comparable performance demands, lava stone vs travertine in Arizona floors covers complementary specification territory worth reviewing alongside your beige stone decision. Citadel Stone’s beige stone floor tile range includes options with surface density suited to Arizona’s outdoor thermal cycling, with projects documented in Phoenix, Mesa, and Flagstaff.
